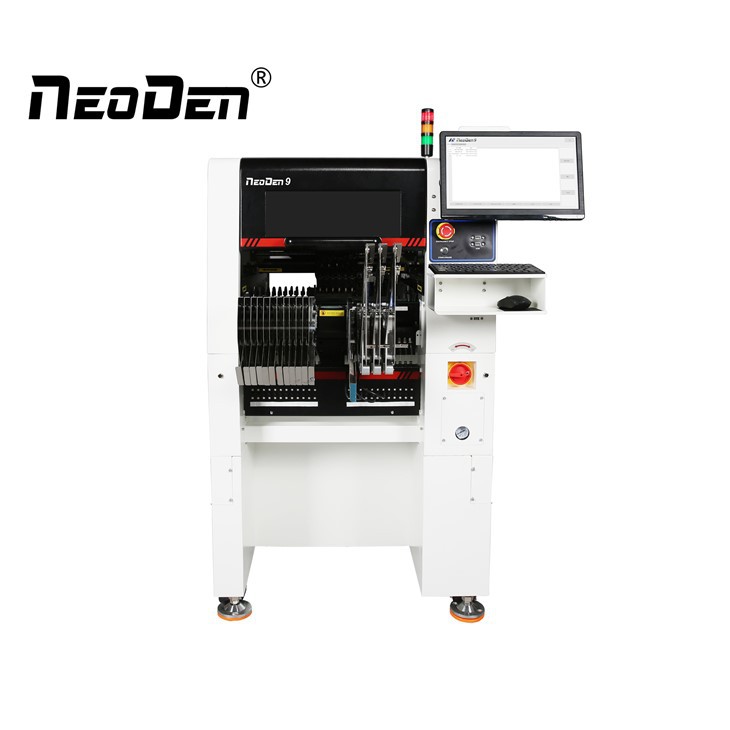

Highlight and Detail
- Efficient and Accurate: The NeoDen9's average mounting speed can reach 9,000CPH , with a maximum speed of 14,000CPH. It uses a real-time calculation algorithm without virtual parameters for speed counting. The repeat position accuracy is ±0.01mm.
- Advanced Control System: The machine utilizes magnetic scale technology, which is commonly used in well-known brands, to achieve true closed-loop control. This ensures long-term stable placement accuracy. The XY motion feedback is a closed-loop control system , and it is driven by a Panasonic A6 400W motor for better torque and acceleration. The screw used is a C5 precision ground screw , with an accuracy of 0.018mm within a 300mm length.
- Powerful Software Features: The machine is equipped with NeoDen's independent Linux software, which ensures flexible and expedient upgrading , as well as easier operation and faster training. It also has a 1-click optimization function for mounting sequences and quick calibration of the picking position.
NeoDen9 SMD Machine Parameter
| Basic Specifications | Number of Heads: 6 |
| Machine Dimension: L 1220 mm*W 800 mm*H 1350 mm | |
| Machine Weight: 500 KG | |
| Performance Parameters | Maximum Mounting Speed: 14,000 CPH |
| Repeat Position Accuracy: ±0.01 mm | |
| Feeding System | Number of Tape reel Feeders: 53pcs (all 8 mm) |
| Feeder Type: Yamaha Electric/Pneumatic | |
| Number of IC Tray: 20 | |
| Component Range | Maximum Component Height: 16 mm |
| PCB Applicable Size | Placement Area: 460 mm * 300 mm |
| Track Handling: Automatic | |
| Hardware and Power Supply | XY Drive motor: Panasonic A6 400W |
| XY Motion feedback control: Closed loop control system | |
| Vision System: High Resolution Flying Vision Camera System | |
| Input Power: 220V/50HZ (110V/60HZ Alternative) | |
| Compressed Air: > 0.6 Mpa | |
| Software & Services | Operating System: NeoDen independent Linux software |
| Technical Support: Lifetime technical support and system updates |
NeoDen9 SMD Machine Video
Monthly Inspection
| Items | Detailed Inspection |
| X/Y axis | Make sure no abnormal noise while placement head moving. |
| X/Y motor | Make sure X/Y motors no overheating. |
| Nozzle | Checking if all nozzles are good without bend and nozzle surface is horizontal |
| Air hose |
Checking the connection between air hose and machine, keep sure the hose in good situation without wearing or air leaking. |
| Step motor |
Checking if any dirty on step motor, synchronous belt, Synchronous wheel. Make sure the Z-axis motor can up, down and rotate smoothly. |
| Z-axis motor |
Checking if the placement head can go up and down smoothly. Use your finger to push the nozzle to check if it moves smoothly. Let each nozzle head up and down beyond the normal range. |
| Vacuum pressure | Checking all nozzles' vacuum pressure. If abnormal, please clean nozzles. |
|
Positive pressure |
Checking if the positive pressure normal. |
| Optical axis | Checking whether it is covered dusk. Please keep it clean and lubricated. |
| Operation button | Checking each button to make sure they are well-worked. |
| Connector | Checking if well-connected the air hose and air connector. |
FAQ
Q1: Which payment form you can accept?
A: T/T, Western Union, PayPal etc.
We accept any convenient and swift payment term.
Q2: What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q3: What's your term of the delivery?
A: Our ordinary delivery term is FOB Shanghai.
We also accept EXW, CFR, CIF, DDP, DDU etc. We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q4: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
Q5: What's your after-sale service?
A: Our quality warranty period is 2 years.
Any quality problem will be solved to customer satisfactions.
