Highlight and Detail
- Powerful Software Features: The machine is equipped with NeoDen's independent Linux software, which ensures flexible and expedient upgrading , as well as easier operation and faster training. It also has a 1-click optimization function for mounting sequences and quick calibration of the picking position.
- Versatile Configuration: The NeoDen9 has 6 independently controlled placement heads. Each head can move up and down separately, making it easy to pick up components. The standard effective mounting height reaches 16mm, meeting the requirements for flexible SMT processing. It supports both electric and pneumatic feeders with a maximum of 53 tape reel feeders. The maximum PCB width it can handle is 300mm.
- Smart and Safe: The machine is equipped with a self-developed flying camera recognition system that uses an imported CMOS sensor, a 5-million-level industrial high-definition lens, and 289 LEDs ring shadowless light sources to ensure stable and durable effects. Patented sensor technology allows it to handle black PCBs. The front and rear feeder stacks are also equipped with patent sensors. If a Feeder is not installed correctly, the placement head will be locked to prevent head bumps and abnormalities caused by misoperation.

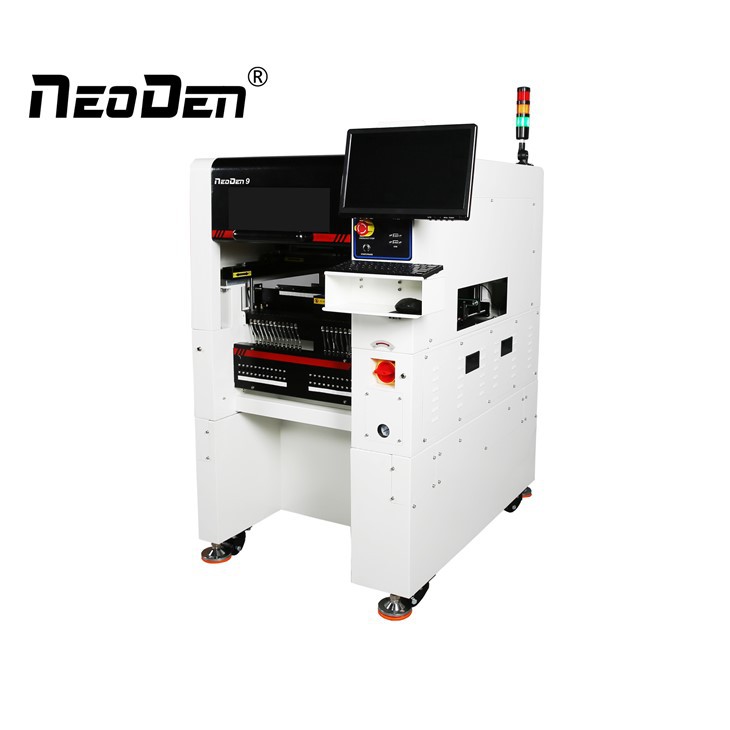

NeoDen9 SMD Machine Parameter
| Basic Specifications | Number of Heads: 6 |
| Machine Dimension: L 1220 mm*W 800 mm*H 1350 mm | |
| Machine Weight: 500 KG | |
| Performance Parameters | Maximum Mounting Speed: 14,000 CPH |
| Repeat Position Accuracy: ±0.01 mm | |
| Feeding System | Number of Tape reel Feeders: 53pcs (all 8 mm) |
| Feeder Type: Yamaha Electric/Pneumatic | |
| Number of IC Tray: 20 | |
| Component Range | Maximum Component Height: 16 mm |
| PCB Applicable Size | Placement Area: 460 mm * 300 mm |
| Track Handling: Automatic | |
| Hardware and Power Supply | XY Drive motor: Panasonic A6 400W |
| XY Motion feedback control: Closed loop control system | |
| Vision System: High Resolution Flying Vision Camera System | |
| Input Power: 220V/50HZ (110V/60HZ Alternative) | |
| Compressed Air: > 0.6 Mpa | |
| Software & Services | Operating System: NeoDen independent Linux software |
| Technical Support: Lifetime technical support and system updates |
NeoDen9 SMD Machine Video
Monthly Inspection
| Items | Detailed Inspection |
| X/Y axis | Make sure no abnormal noise while placement head moving. |
| X/Y motor | Make sure X/Y motors no overheating. |
| Nozzle | Checking if all nozzles are good without bend and nozzle surface is horizontal |
| Air hose |
Checking the connection between air hose and machine, keep sure the hose in good situation without wearing or air leaking. |
| Step motor |
Checking if any dirty on step motor, synchronous belt, Synchronous wheel. Make sure the Z-axis motor can up, down and rotate smoothly. |
| Z-axis motor |
Checking if the placement head can go up and down smoothly. Use your finger to push the nozzle to check if it moves smoothly. Let each nozzle head up and down beyond the normal range. |
| Vacuum pressure | Checking all nozzles' vacuum pressure. If abnormal, please clean nozzles. |
|
Positive pressure |
Checking if the positive pressure normal. |
| Optical axis | Checking whether it is covered dusk. Please keep it clean and lubricated. |
| Operation button | Checking each button to make sure they are well-worked. |
| Connector | Checking if well-connected the air hose and air connector. |
