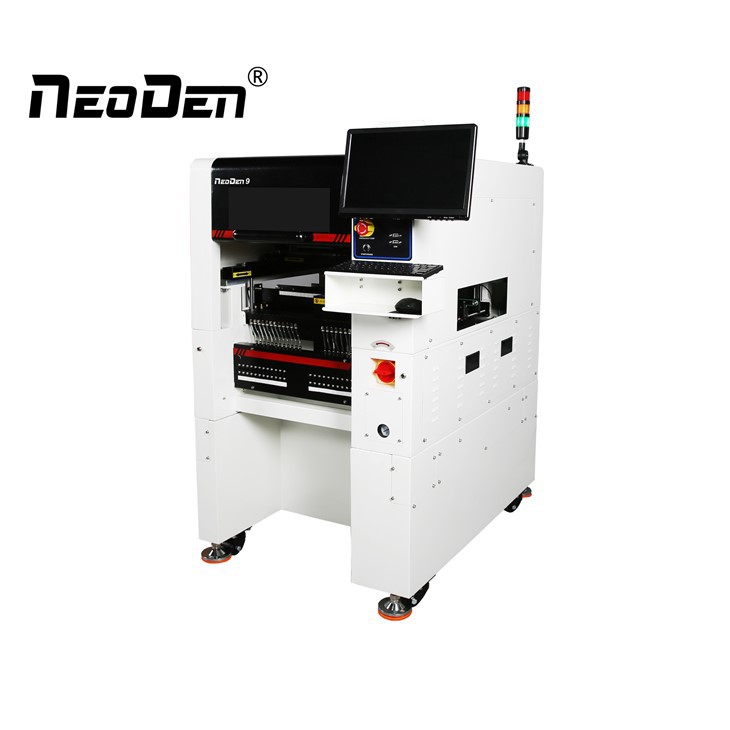

Highlight and Detail
- Advanced Control System: The machine utilizes magnetic scale technology, which is commonly used in well-known brands, to achieve true closed-loop control. This ensures long-term stable placement accuracy. The XY motion feedback is a closed-loop control system , and it is driven by a Panasonic A6 400W motor for better torque and acceleration. The screw used is a C5 precision ground screw , with an accuracy of 0.018mm within a 300mm length.
- Powerful Software Features: The machine is equipped with NeoDen's independent Linux software, which ensures flexible and expedient upgrading , as well as easier operation and faster training. It also has a 1-click optimization function for mounting sequences and quick calibration of the picking position.
- Versatile Configuration: The NeoDen9 has 6 independently controlled placement heads. Each head can move up and down separately, making it easy to pick up components. The standard effective mounting height reaches 16mm, meeting the requirements for flexible SMT processing. It supports both electric and pneumatic feeders with a maximum of 53 tape reel feeders. The maximum PCB width it can handle is 300mm.
NeoDen9 SMD Machine Parameter
| Basic Specifications | Number of Heads: 6 |
| Machine Dimension: L 1220 mm*W 800 mm*H 1350 mm | |
| Machine Weight: 500 KG | |
| Performance Parameters | Maximum Mounting Speed: 14,000 CPH |
| Repeat Position Accuracy: ±0.01 mm | |
| Feeding System | Number of Tape reel Feeders: 53pcs (all 8 mm) |
| Feeder Type: Yamaha Electric/Pneumatic | |
| Number of IC Tray: 20 | |
| Component Range | Maximum Component Height: 16 mm |
| PCB Applicable Size | Placement Area: 460 mm * 300 mm |
| Track Handling: Automatic | |
| Hardware and Power Supply | XY Drive motor: Panasonic A6 400W |
| XY Motion feedback control: Closed loop control system | |
| Vision System: High Resolution Flying Vision Camera System | |
| Input Power: 220V/50HZ (110V/60HZ Alternative) | |
| Compressed Air: > 0.6 Mpa | |
| Software & Services | Operating System: NeoDen independent Linux software |
| Technical Support: Lifetime technical support and system updates |
NeoDen9 SMD Machine Video
Daily Inspection
| Items | |
|
Items check before power on |
① Temperature& Moisture: Temperature 20℃～26℃, humidity 45~70% ② Indoor environment: Air clean without aggregate air. ③ No clutters within the placement area and keep rails clean. ④ No spots on cameras and keep lens clean. ⑤ No obstacles around the head nozzles. ⑥ Checking if nozzles are dirty, distorted; If so, please clean or change the nozzle. ⑦ Checking if feeders are correctly installed in stacks and confirm no clutters on stack. ⑧ Checking the connection of air connector and air hose. ⑨ Checking air pressure. |
|
Items check after power on |
① Checking if the monitor display normally after system start up. ② Checking if emergency button can work normally or not. ③ Checking if placement head can move back to the origin. ④ Checking if there's abnormal noise while placement head move. ⑤ Checking all nozzles vacuum pressure. ⑥ Checking if PCB moving on rails smoothly or not; Sensor workable or not. ⑦ Checking if the board has been well fixed by magnetic bar and pins. |
FAQ
Q1. Can l visit your factory?
A. By all means, we warmly welcome your arrival, Before you take off from your country, please let us know.
We will show you the way and arrange time to pick you up if possible.
Q2. Can I request to change the form of packaging and transportation?
A. Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q3. What is your advantage compared with your competitors?
A. (1). Qualified Manufacturer
(2). Reliable Quality Control
(3). Competitive Price
(4). High Efficiency working (24*7hours)
(5). One-Stop Service
Q4. Have your products been exported?
A. Yes, they have been exported to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Iran, Vietnam, Indonesia, Singapore, Greece, Netherlands, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines, Singapore, HK, Taiwan...
Q5. May I know what's the nearest airport from your company? in case I visit your company.
A. Hangzhou Airport is the nearest, welcome to visit us.
Q6. When can I get the quotation?
A. We usually quote within 8 hours after we get your inquiry.
If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.
