What Is SMT Inspection Equipment?



SMT inspection equipment is a range of automated tools used in electronics manufacturing to automatically check PCBs for defects. This equipment uses technologies like cameras, X-rays, and 3D analysis to find issues such as misplaced components, soldering problems, and incorrect polarity, ensuring product quality before further production. Common types include Automated Optical Inspection machine and X-ray Inspection Machines.

NeoDen Smart Quality Closed-Loop: 3D SPI, AOI, X-Ray Comprehensive High-Precision Inspection






Applications of SMT Inspection Equipment
products

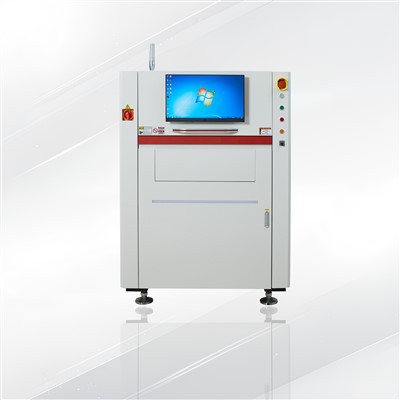

NeoDen-S1-SPI

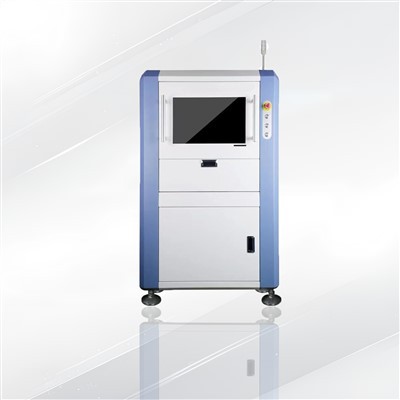

NeoDen-AOI
X-ray-machine
Inspection Machine Model NeoDen S1 SPI Machine NeoDen ND800 AOI Machine NeoDen ND56X X-Ray
Core Functionality

Pre-production process control.



Utilizes high-precision 3D measurement to instantly detect defects after solder paste printing, ensuring quality in the first SMT process.

 End-to-end component placement and solder joint defect detection.
High-speed, flexible inspection of visible defects (wrong parts, missing parts, polarity, solder joint quality) on all PCBA. Standard equipment for all SMT production lines.

Non-destructive internal structure analysis.


Visualizes optically invisible internal defects such as BGA/CSP solder joint voiding rates, internal chip breaks, and internal solder cracks, focusing on the highest level of quality verification.
Core Industry Applications
  • Automotive Electronics: Demands extremely high solder joint reliability, requiring strict solder paste volume control to prevent subsequent cold soldering.
  • Medical Electronics: Products have extended lifecycles where any cold solder joint may cause catastrophic failures, necessitating source control.
  • High Volume Production: Manufacturers of premium consumer electronics and communication devices reduce overall rework costs by eliminating defects upfront.
  • Consumer Electronics: Prioritizes speed and coverage for post-reflow final quality inspection and rapid defect tracing.



  • Industrial/Security: Diverse product types require rapid program switching and flexible handling of multi-variety, small-batch (NPI) inspection demands.



  • Networking & Telecom: Comprehensive inspection of high-speed, high-density component placement on complex PCBs.
  • Semiconductor Packaging: Inspects voiding rates and internal quality of solder joints in advanced packages like BGA, CSP, and QFN.



  • Aerospace/Military: Zero tolerance for internal defects; X-ray verification is essential to confirm the integrity of invisible solder joints.



  • R&D Labs/FA: Used for new product development, process validation, and failure mechanism analysis, providing high-resolution imaging of component internal structures.



FAQ



Q: How can I build up SMT line with ND800?

A: Communication Method: Standard SMEMA Connection.

Q: Can we use the machine to inspect placement effect?

A: Yes, install the machine after chip mounter, it can help checking: missing part, offset, skewing, tombstone, mounting on side, turnover, wrong parts, damage and reversal, etc.

Q: Is the NeoDen ND56X Easy to Operate and Maintain?

A: Yes.
It is an offline device , making it easy to operate.
The X-ray tube and FPD require no maintenance during normal use.
Operators can learn to use the system within approximately one hour.

Q: What Components Can the ND56X Inspect?

A: The machine supports inspection of:

  • Chips
  • BGA / CSP packages
  • Wafers
  • SOP / QFN packages
  • SMT components
  • PTU modules

Q: Why is SPI necessary? Can't we just rely on AOI?

A: Catches defects at the earliest stage (paste printing), preventing costly rework later.

AOI inspects placed components/soldered joints after reflow.

SPI prevents defects AOI finds.



As one of the leading smt inspection equipment manufacturers and suppliers in China, we offer a wide range of products with superior quality. Please feel free to buy high-grade smt inspection equipment at competitive price from our factory. Thank you for your interest in our products.
