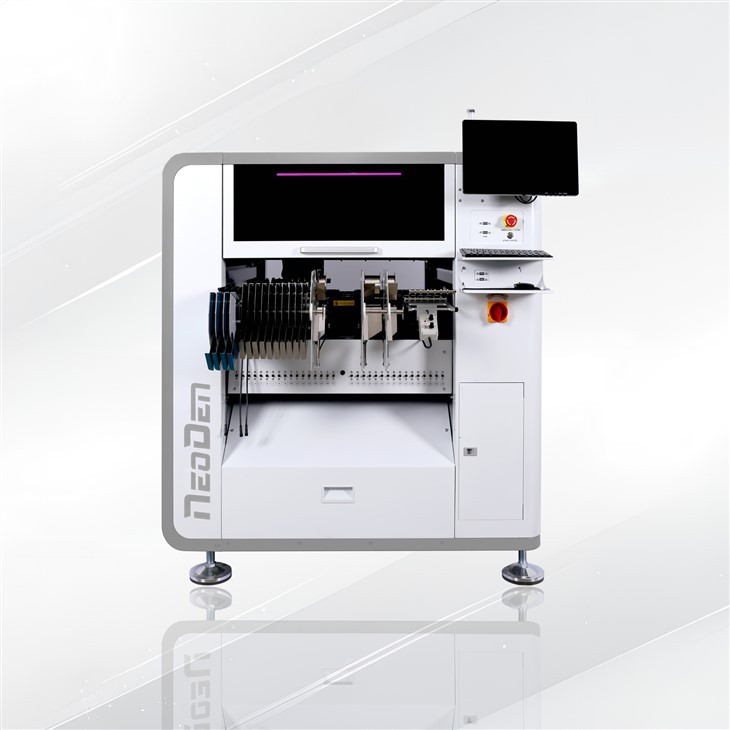

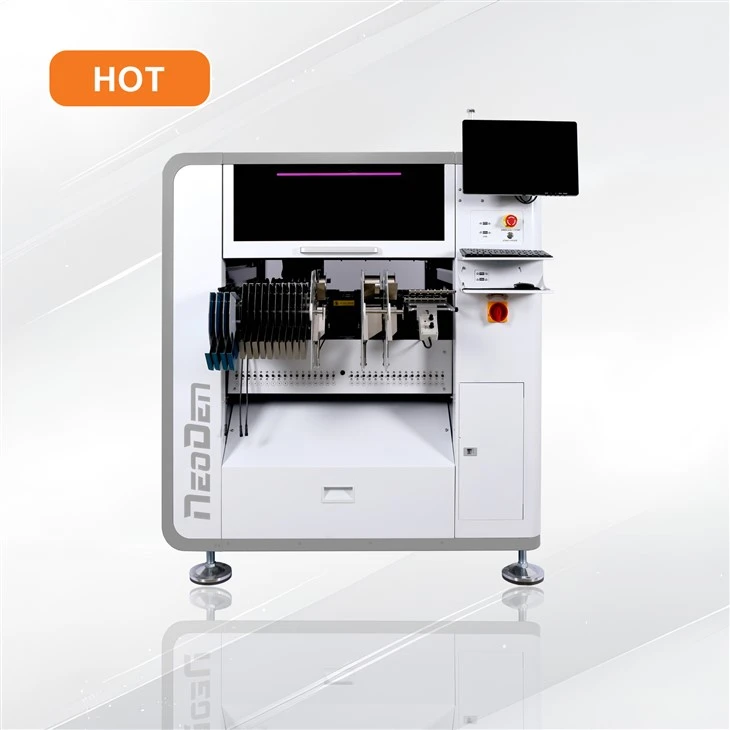

NeoDen N10P Overview
Brand and Model: NeoDen N10P
Application Areas: Widely used in industries with high-volume production demands for long boards, such as LED lighting, electronic device manufacturing, and mass production of various industrial control boards.
Core Advantages: High-speed and fully closed-loop control deliver stable and reliable performance. Simultaneously, support for 1500 mm ultra-long boards and 39-position automatic nozzle changing achieve market-leading flexibility and compatibility.
Highlight And Details
Ultimate Efficiency and Closed-Loop Control
High-Speed Performance: Equipped with 8 high-precision placement heads and a fully closed-loop control system, it achieves a stable placement speed of up to 20,000 CPH, significantly boosting production line capacity.
Breakthrough Long Board Support
Extra-Large Board Compatibility: Designed for modern manufacturing demands, it supports ultra-long PCBs measuring up to (L) 1500 mm * (W) 450 mm (via extended rails), making it ideal for long board applications like LED light strips.
Intelligent Automated Nozzle Change System
39-Position Automatic Nozzle Library: The system now features automatic nozzle replacement with up to 39 nozzle positions. This innovation significantly boosts integrated placement speed and production flexibility.
Precision Vision & IC Auto-Calibration
High-definition IC vision: The enhanced IC camera optimizes imaging dimensions for IC components. Combined with auto-nozzle switching, it enables automatic IC component calibration for high-precision placement.
Stable Feeding & Ultra-High Capacity
80 Feeder positions: The machine supports up to 80 tape-and-reel feeders, significantly increasing single-setup feeding capacity. Simultaneously, feeder mounts support mixed use of electric and pneumatic feeders.
sure Monitoring and Operational Optimization
Nozzle Air Pressure Measurement: The N10P features nozzle air pressure measurement, enabling real-time monitoring and enhanced operational stability to effectively prevent potential placement failures.
User-Friendly Operation: Deeply optimized software design improves system usability and stability, while providing automatic nozzle height calibration for effortless operation.
NeoDen N10P SMT Machine Parameter
| Basic Specifications | Model: NeoDen N10P |
| Number of Heads: 8 | |
| Drive System: Panasonic A6 750W Servo Motor | |
| Drive Method: WON Linear Guide / THK Grinding-Grade Ball Screw C5-2040 | |
| Motion Feedback: SPM/IBG Magnetic Linear Encoder | |
| Performance Parameters | Max. Placement Speed: 20,000 CPH |
| Positioning Accuracy: ±0.01 mm | |
| Control System: Fully Closed-Loop Control System | |
| Vision System: Dual Mark Camera + Front Flying Camera + IC Camera | |
| Component Range | Min. Component Size: 0201 |
| Max. Component Size: 40 * 40 mm | |
| Max. Component Height: 16 mm | |
| Flying Camera Component Range: 0201 - 22 × 22 mm | |
| IC Camera Max. Recognition Size: 50 mm × 50 mm | |
| Feeding System | Tape Feeder Capacity: 80 (all 8 mm) |
| Number of IC Trays: 10 | |
| Automatic Nozzle Changer: 39 Nozzle positions | |
| PCB Applicable Size | Max PCB Size (without IC Tray): 450 mm × 1500 mm |
| Max PCB Size (with IC Tray): 395 mm × 1500 mm | |
| PCB Thickness: 0.2 - 3.5 mm | |
| Hardware and Power Supply | Machine Dimensions: 1289 × 1254 × 1386 mm |
| Net Weight: 1000 kg | |
| Rated Power: 600W | |
| Power Requirements: Single-phase, 220V/110V, 50Hz/60Hz | |
| Air Supply Pressure: 0.6 MPa - 0.8 MPa | |
| Air Supply Flow Rate: 37 L/min |
NeoDen n10P Video
NeoDen N10P SMT machine
NeoDen N10P Commercial Information
MOQ: 1 pc
Packaging Details: Wooden crate packaging
Delivery Time: 3-7 Days
About NeoDen
Factory
Quick facts about NeoDen
- Established in 2010, 200+ employees, 27,000+ Sq.m. factory.
- NeoDen provide one-stop SMT line.
- Successful 10000+ customers across the globe.
- 40+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
- R&D Center: 3 R&D departments with 25+ professional R&D engineers.
- Listed with CE and got 70+ patents.
- 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
Exhibition
Certification
FAQ
Q: What's included in the feeder capacity?
- Up to 80 tape Feeders (33 front + 47 rear).
- Supports mixed electric and pneumatic Feeders.
- Optional support for up to 20 stick Feeders or 60 tray Feeders.
Q: What are the key features of the NeoDen N10P SMT machine?
- Automatic nozzle changer with 39 slots for improved efficiency
- Triple vision system: Mark camera + Flying camera + IC camera
- High-precision alignment with ±0.01 mm accuracy
- Nozzle air pressure monitoring to prevent errors and material waste
- Supports PCBs up to 1500 mm long with optional extension conveyor
Q: What PCB Size Range Does the NeoDen N10P Support?
Minimum: 50 x 50 mm
Maximum:
- Without IC tray holder: 450 x 1500 mm
- With 1 IC tray holder: 395 x 1500 mm
Q: What Are the Dimensions and Weight of the NeoDen N10P?
- Machine size: 1289 x 1254 x 1386 mm
- Net weight: 1,000 kg
Q: What's the max tape feeder quantity supported?
A: If using only 8 mm tape Feeders, the NeoDen N10P supports up to 80 Feeders.
