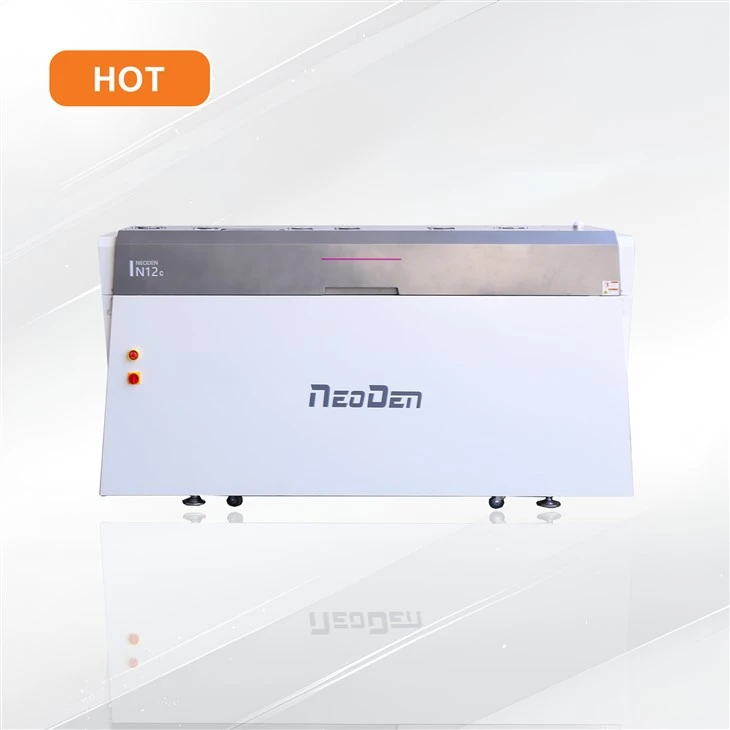

NeoDen IN12C Reflow Soldering Machine Overview
Brand and Model: NeoDen IN12C
Application Areas: Suitable for electronic manufacturing requiring efficient, high-precision reflow soldering, particularly for complex chips such as 0201 micro-components and BGAs/QFNs with stringent requirements.
Core Advantages: Its patented uniform heating technology and compact 12-zone design, ultra-low power consumption (typical operating power approx. 2.2kW), and maintenance-free stainless steel tracks in a seamless integration.
Highlight and Details
Superior Welding Performance and Temperature Control System
- 12-Zone Precision Control: Features a compact 12-zone design (6 upper zones/6 lower zones) with high-sensitivity temperature sensors for intelligent, high-precision temperature control.
- Patented Uniform Heating Technology: Incorporates an exclusive patented "uniform heating plate" and high-performance aluminum alloy heating plates. High thermal compensation efficiency effectively minimizes lateral temperature variations within the oven, ensuring exceptional soldering consistency.
- Professional Quad-Channel Temperature Monitoring: Features a built-in, specialized 4-channel board surface temperature monitoring system. Provides comprehensive real-time data feedback, effortlessly handling complex soldering processes for various electronic products.
- Hot Air Convection for Wide Applicability: Utilizes hot air convection heating for outstanding soldering performance, effortlessly handling high-precision components like 0201, BGA, QFP, and QFN.
Ultimate Energy Efficiency and Low Operating Costs
- Ultra-Low Power Consumption Design: Operating power of only approximately 2.2KW, requiring standard household electricity for operation with minimal power supply demands.
- Significant Cost Savings: Compared to similar products, the annual electricity savings from the IN12C can cover the cost of purchasing a second unit, delivering an exceptionally high return on investment.
- High Efficiency, Low Loss: Unique heating module design and thermal insulation protection, combined with an optimized fume filtration system, effectively prevent heat loss and reduce operational power consumption.
Maintenance-Free Track & Stable Reliability
- Truly maintenance-free: Stainless steel mesh chain tracks can be started immediately even after prolonged disuse, eliminating the need for high-temperature lubricants to prevent rusting-unlike traditional carbon steel chains. This significantly reduces daily maintenance costs and operational requirements.
- Lightweight, Long Lifespan: The track's low self-weight (<5KG) effectively reduces long-term motor load. Paired with a custom-developed drive motor, it enhances electrical control stability and extends motor service life.
Easy Operation PCB reflow oven
- Built-in Fume Filtration System: An integrated, optimized welding fume filtration system effectively captures harmful gases. Its sleek appearance meets environmental standards, making it ideal for high-end work environments.
- Intelligent Control & Storage: The custom-developed smart control system offers intuitive yet powerful operation, storing up to 40 work files (welding recipes) for instant recall.
- Multi-Function Indicator Lights: Equipped with red, yellow, and green alarm indicator lights, clearly displaying temperature status across zones for real-time operational monitoring.
- Safety Assurance: The upper cover features an automatic limit function upon opening, ensuring operator safety.
NeoDen IN12C SMT reflow machine Parameters
| Heating/Temperature Control System |
Number of Heating Zones: 12 Zone Design (6 upper / 6 lower) |
|
Heating Type: Hot Air Convection |
|
|
Heating Element: High-Performance Aluminum Alloy Heating Plate (Non-Traditional Heating Tubes) |
|
|
Temperature Control Range: Room temperature ~ 300 ℃ |
|
|
Temperature Measurement System: Professional 4-channel real-time PCB surface temperature monitoring |
|
|
Heat-up Time: Approx. 30 minutes |
|
|
Capacity/Process Parameters |
Maximum PCB Width: 300 mm |
|
Solder Fume Treatment: Built-in solder fume filtration system |
|
|
Max Height: Top 30mm / Bottom 15mm |
|
|
Conveyor System |
Conveyor Speed: 50 - 600 mm/min |
|
Conveyor Type: Rail |
|
|
Track Direction: Left to Right |
|
|
Electrical Specifications |
Power Supply: 220V |
|
Typical Working Power: Approx. 2.2KW |
|
|
Physical Specifications |
Equipment Dimensions (L*W*H): 2300 * 900 * 1300 mm |
|
Net Weight: 300 KG |
Commercial Information
MOQ: 1 pc
Packaging Details: Wooden crate packaging
Delivery Time: In stock
About NeoDen
Factory
Quick facts about NeoDen
- Established in 2010, 200+ employees, 27,000+ Sq.m. factory.
- NeoDen provide one-stop SMT line.
- Successful 10000+ customers across the globe.
- 40+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
- R&D Center: 3 R&D departments with 25+ professional R&D engineers.
- Listed with CE and got 70+ patents.
- 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
Exhibition
Certification
FAQ
Q: How many heating zones does the NeoDen IN Series have?
A: IN6/IN6C: has 6 heating zones, upper 3 and down 3.
IN8C: has 8 heating zones, upper 4 and down 4.
IN12C: has 12 heating zones, upper 6 and down 6.
Q: What Is the Heating Technology Used in the NeoDen IN Series?
A: NeoDen IN Series reflow ovens uses nichrome wire heating combined with aluminum alloy heat conduction, ensuring stable and uniform heat distribution.
Q: Does the NeoDen PCB reflow oven support double-sided PCB boards?
A: IN6C, IN8C, IN12C with track transmission supports double-sided PCB boards.
IN6 with mesh chain, not suitable for double-sided PCB boards.
Q: What Is the Warranty Policy for the NeoDen SMT reflow machine?
- Warranty period : 2 years from delivery date
- Free replacement of necessary spare parts during warranty.
- Lifetime technical support provided free of charge.
Q: How to choose the right reflow oven model?
- IN6 and IN6C is for prototyping or small production
- IN6C for double-sided board or automatic line
- IN8C is for small-medium production
- IN12C is for medium-sized mass production
