NeoDen 9 Overview
Brand and Model: NeoDen 9
Application Areas: Suitable for small and medium-sized electronics manufacturers, SMT contract manufacturers (EMS), electronics R&D laboratories, educational training institutions, etc.
Core Advantages: High speed, high precision, flexible efficiency, and automation.
Highlight and Detail
High-Efficiency and Precision Placement Performance
Independently Controlled 6 Placement Heads:
Each head moves vertically independently for easy component pickup, with a standard effective placement height of up to 16 mm to meet flexible SMT processing demands.

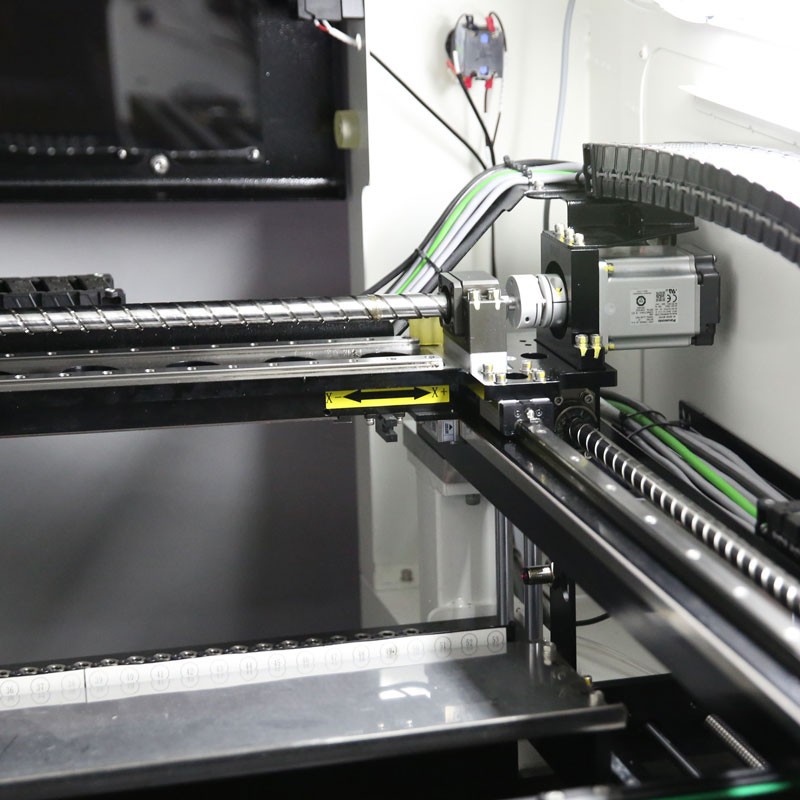

High-Precision Motion System
- X/Y axes utilize WON linear guides and TBI C5 precision-ground ball screws.
- Equipped with Panasonic A6 400W servo motors delivering superior torque and acceleration for stable, long-lasting placement.
- C5 precision-ground ball screws maintain 0.018 mm accuracy within 300mm length.
- Coupled with Taiwan PVP and Japan Miki couplings, precision-assembled to minimize wear and aging, ensuring stable, long-lasting accuracy.
Magnetic Scale Closed-Loop Control Technology:
Utilizes industry-standard magnetic scale technology for true closed-loop control, maintaining consistent placement accuracy over time. Calibration is effortless without supplier engineer intervention.
Advanced Vision and Software System
High-Speed Flying Vision System: Incorporates a proprietary flying camera recognition system utilizing imported CMOS sensors, 5-megapixel industrial HD lenses, and a 289-LED annular shadow-free light source for stable, enduring recognition performance.
- High-Precision Mark Point Recognition: Equipped with two Mark cameras to ensure all pick-up positions are photographed.
- NeoDen Independent Linux Software: Ensures flexible, convenient upgrades. Simplifies operation and accelerates training.
- One-Click Optimization: Includes placement sequence optimization and rapid pick-up position calibration.
Exceptional Compatibility and Safety
Robust Feeder Compatibility: Supports up to 53 reel feeders within a compact 800mm body width, compatible with both electric and pneumatic Feeders.
- PCB Handling Capacity: Accommodates PCBs up to 300mm width, meeting most PCB size requirements.
- Patented Sensor Safety Protection: Equipped with patented sensors on front and rear feeder stacks. If feeders are improperly installed, the placement head locks to prevent head collisions and anomalies caused by misoperation.
- Automatic Rail Handling: Features a dual-screw linear rail widened structure design.
- Special PCB Handling: Equipped with patented sensor technology to handle black PCBs, and supports segmented placement for PCBs up to 800mm in length.
Automatic Rail Handling
Features a dual-screw linear rail widened structure design.
Special PCB Handling: Equipped with patented sensor technology to handle black PCBs, and supports segmented placement for PCBs up to 800mm in length.
NeoDen9 SMD Machine Parameter
| Basic Specifications | Number of Heads: 6 |
| Machine Dimension: L 1220 mm * W 800 mm * H 1350 mm | |
| Machine Weight: 500 KG | |
| Performance Parameters | Maximum Mounting Speed: 14,000 CPH |
| Repeat Position Accuracy: ±0.01 mm | |
| Feeding System | Number of Tape reel Feeders: 53pcs (all 8 mm) |
| Feeder Type: Yamaha Electric/Pneumatic | |
| Number of IC Tray: 20 | |
| Component Range | Maximum Component Height: 16 mm |
| PCB Applicable Size | Placement Area: 460 mm * 300 mm |
| Track Handling: Automatic | |
| Hardware and Power Supply | XY Drive motor: Panasonic A6 400W |
| XY Motion feedback control: Closed loop control system | |
| Vision System: High Resolution Flying Vision Camera System | |
| Input Power: 220V/50HZ (110V/60HZ Alternative) | |
| Compressed Air: > 0.6 Mpa | |
| Software & Services | Operating System: NeoDen independent Linux software |
| Technical Support: Lifetime technical support and system updates |
NeoDen9 SMD Machine Video
Commercial Information
MOQ: 1 pc
Packaging Details: Wooden crate packaging
Delivery Time: 3-7 Days
About NeoDen
Factory
Quick facts about NeoDen
- Established in 2010, 200+ employees, 27,000+ Sq.m. factory.
- NeoDen provide one-stop SMT line.
- Successful 10000+ customers across the globe.
- 40+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
- R&D Center: 3 R&D departments with 25+ professional R&D engineers.
- Listed with CE and got 70+ patents.
- 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
Exhibition
Certification
FAQ
Q: I'm Using This Type of Machine for the First Time - Is It Easy to Operate?
A: We understand that learning to use a new machine can be challenging.
To help you get started, we provide:
- An English user manual
- Step-by-step guide videos
- Email and WhatsApp support for real-time assistance
Q: What types of tape Feeders does the NeoDen9 support?
A: The NeoDen 9 supports both electric feeders and pneumatic Feeders.
Q: What Feeder size does the NeoDen9 support?
A: The NeoDen 9 supports both pneumatic and electric feeders in the following widths:
- 8 mm
- 12 mm
- 16 mm
- 24 mm
- 32 mm
- 44 mm
- 56 mm
Q: Are Feeders Included in the Default Package?
A: No, Feeders are not included in the default package.
They must be customized and purchased separately according to your production needs.
Q: What Is the Packaging Information for the NeoDen9?
- Packaging dimensions : 1280 x 920 x 1550 mm
- Gross weight : Approximately 520 kg

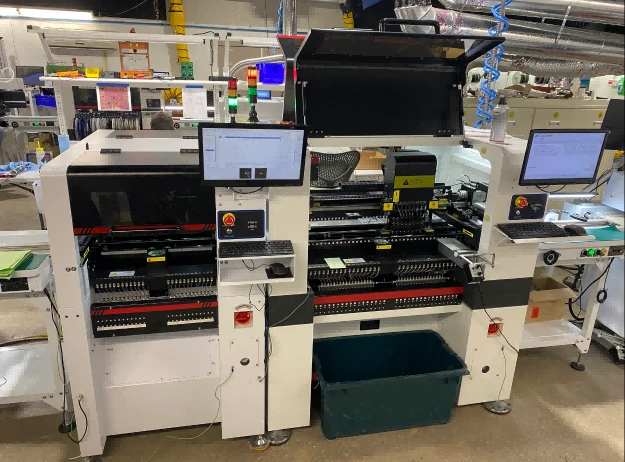

Real-World Success: NeoDen9 Pick and Place Machine for Mid-to-Large Batch Production
"The NeoDen9 SMT Line is Working Well for Our Production"
Designed for high-efficiency manufacturing, the NeoDen9 pick and place machine powers this client's active SMT line, delivering high placement speeds, stable component feeding, and reliable continuous throughput.
"The NeoDen9 SMT line is working well for our production, and we are satisfied with its performance." - Verified Client Feedback
Real-World Success: NeoDen9 Multi-Machine Inline Production Upgrade
"Software Quality & Placement Accuracy is a Substantial Step Up"
Upgrading from their previous entry-level machine, this client successfully deployed our high-speed NeoDen9 pick and place machine line. By leveraging 4x NeoDen9 units in multi-machine inline connection, they achieved seamless software control, higher placement precision, and significantly expanded PCBA throughput.
"We placed our first board this weekend using our new Neoden 9. Overall, it's working really well. The software quality and placement accuracy is a substantial step up from our previous unit." - Verified Client Feedback
