Highlight and detail
1. Electronic feeders,adopts feeding error corrections technique to help smooth the picking and reduce the deviation.
2. General conveyor is supported,to help users achieve automatic production without labors at all.
3. Newly designed mounting head that adopts suspended, fully symmetric and high degree of coupling way, to ensure it can mount components with higher space, more gentle and more accurate.
4. Supports remote system upgrade, NeoDen will provide a life-long technical service and system upgrade.
5. Lightweight body and stable quality suit for customers who want to start small-medium production, lab research and prototyping.
Electronic Feeders

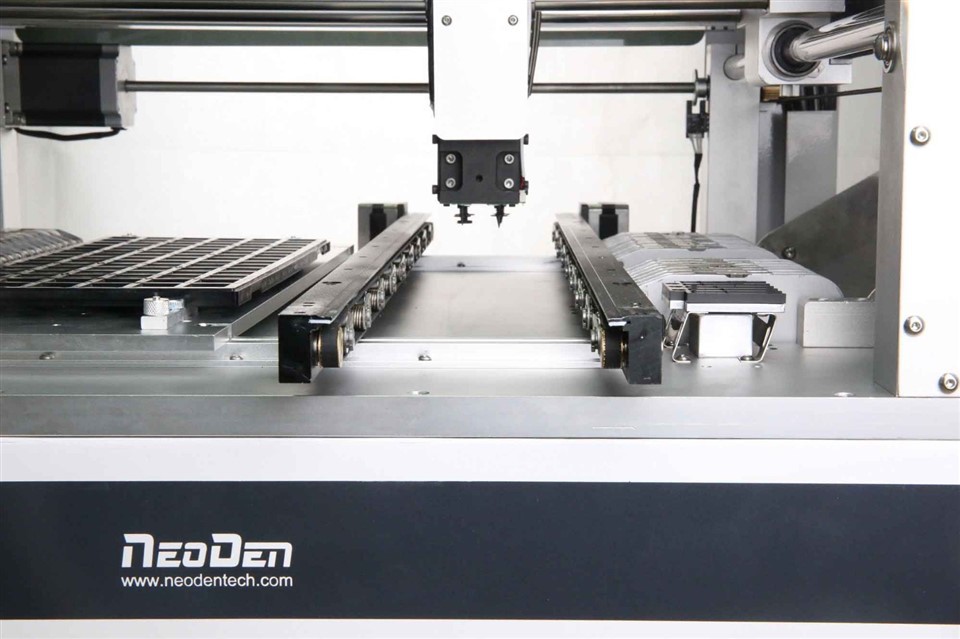

On-line Dual Rails

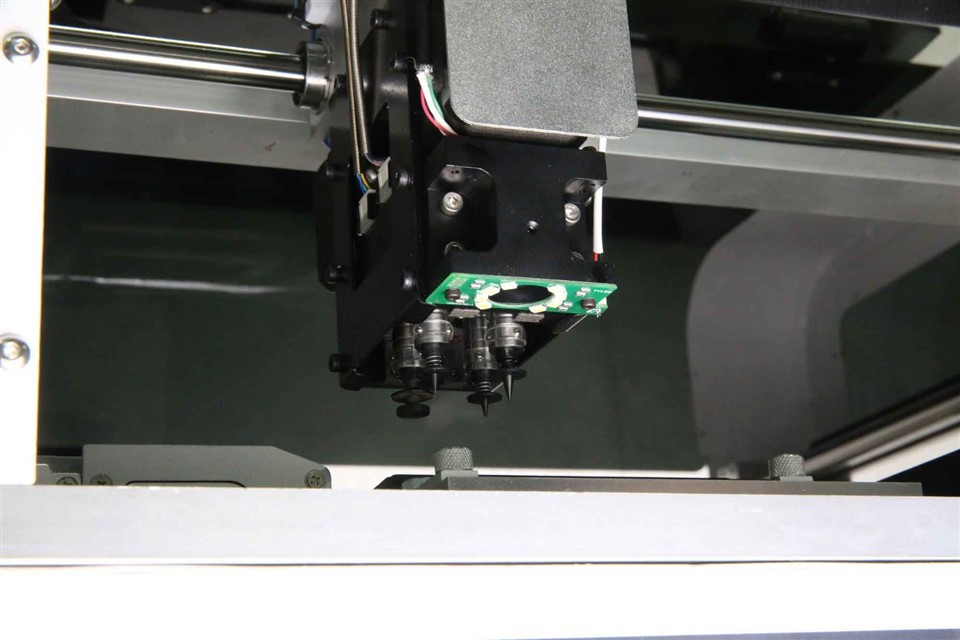

Four High Precision Nozzles

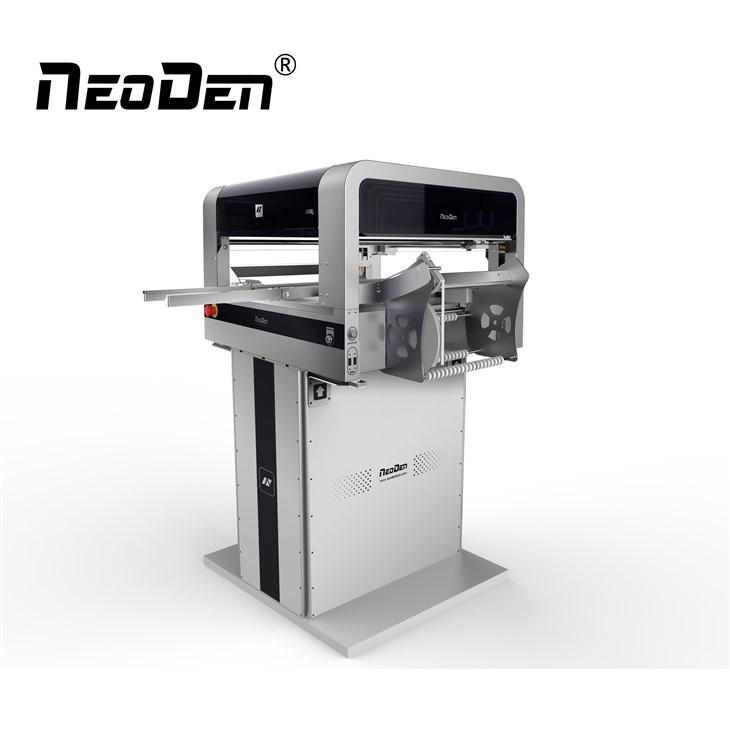

NeoDen4 desktop pick and place machine Parameter
| Basic Specifications | Model: NeoDen4 |
| Machine Structure: Single Gantry with 4 Heads | |
| Performance Parameters | Placement Rate (Vision Off): 5,000 CPH |
| Placement Rate (Vision On): 4,000 CPH | |
| Alignment Method: Stage Vision | |
| Placement Accuracy: ±0.02 mm | |
| X-Y Repeatability: ±0.02 mm | |
| Rotation: ±180° | |
| Component Range | Min Component Size: 0201 |
| Max Component Size: 32*32 mm | |
| Maximum Component Height: 5 mm | |
| Feeding System | Tape Feeders: 48 pcs (all 8 mm) |
| Vibration Feeder: 5 pcs | |
| Tray Feeder: 5 pcs | |
| PCB Compatible Size | Max Size: 280 x 1500 mm |
| Board Size with 1 waffle Tray: 140 x 1500mm | |
| Auto Rails: 1.5 meters | |
| Hardware and Power Supply | Main Control: GUI (Graphical User Interface) |
| Electricity Supply: 110V/220V | |
| Power: 180W | |
| Machine Size: 870(L) x 680(W) x 480(H) mm | |
| PCB Applicable Dimensions | Max Size: 310 x 1500 mm |
| Board Size with Tray Enabled: 140 x 1500 mm | |
| Software & Services | System Updates: Supports remote system updates |
| Technical Support: Lifetime technical support and system updates |
NeoDen4 SMT Machine Video
Packaging & Shipping
Packaging:
one piece in one wooden case
Suitable quantity to an export wooden case
other packing accessories in regular
Customer required packing is available
Shipping: by air, sea, or express
Delivery time: about 15~30 days after order details and production confirmed.
About NeoDen
Factory
Company Profile
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
- Established in 2010 with 200+ employees & 27,000+ Sq.m. factory of independent property rights, to ensure the standard management and achieve the most economic effects as well as saving the cost.
- Owned the own machining center, skilled assembler, tester and QC engineers, to ensure the strong abilities for NeoDen SMT machines manufacturing, quality and delivery.
- 40+ global partners covered in Asia, Europe, America, Oceania and Africa, to successfully serve 10000+ users in all of the world, to ensure the better and faster local service and prompt response.
- 3 different R&D teams with total 25+ professional R&D engineers, to ensure the better and more advanced developments and new innovation.
Exhibition
Certification
FAQ
Q1. What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q2. What's your term of the delivery?
A: Our ordinary delivery term is FOB Shanghai.
We also accept EXW, CFR, CIF, DDP, DDU etc.
We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q3. Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
Q4. What's your after-sale service?
A: Our quality warranty period is 2 years.
Any quality problem will be solved to customer satisfactions.
Q5. Where we can get products information from?
A. You can go through our website links as below: www.smtneoden.com
Also you can contact our international marketing team.
