Highlight and detail
1. Dual vision system(up-looking and down-looking cameras), equip with high speed industry CCD cameras can help to identify and calibrate the four picking components at one time, highly improved accuracy of placement from 0201 to BGA.
2. NEODEN independent research and development on-line dual rails:
A. Support connect to conventional conveyor directly,help reach the goal of continuous automatic feeding the boards.
B. Set the feeding position at anywhere shorten the mounting route.
C. Bases on NeoDen Mark point relocated technology, can mount overlong boards easily.
3. Four high precision nozzles, after calibration by vision software, it can reach to pick and place four components at one time with 360 degrees rotation at -180 to180.
Electronic Feeders
On-line Dual Rails
Four High Precision Nozzles

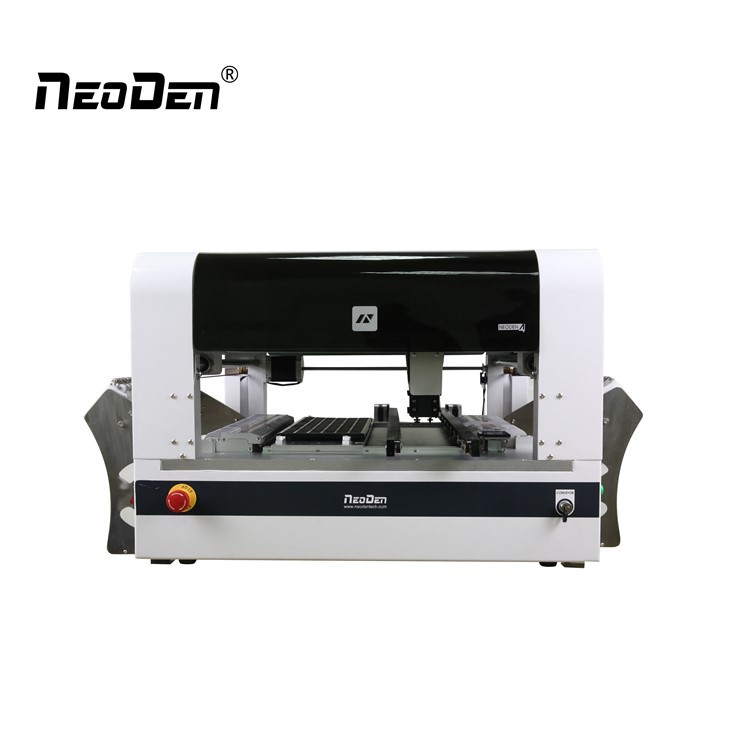

NeoDen4 desktop pick and place machine Parameter
| Basic Specifications | Model: NeoDen4 |
| Machine Structure: Single Gantry with 4 Heads | |
| Performance Parameters | Placement Rate (Vision Off): 5,000 CPH |
| Placement Rate (Vision On): 4,000 CPH | |
| Alignment Method: Stage Vision | |
| Placement Accuracy: ±0.02 mm | |
| X-Y Repeatability: ±0.02 mm | |
| Rotation: ±180° | |
| Component Range | Min Component Size: 0201 |
| Max Component Size: 32*32 mm | |
| Maximum Component Height: 5 mm | |
| Feeding System | Tape Feeders: 48 pcs (all 8 mm) |
| Vibration Feeder: 5 pcs | |
| Tray Feeder: 5 pcs | |
| PCB Compatible Size | Max Size: 280 x 1500 mm |
| Board Size with 1 waffle Tray: 140 x 1500mm | |
| Auto Rails: 1.5 meters | |
| Hardware and Power Supply | Main Control: GUI (Graphical User Interface) |
| Electricity Supply: 110V/220V | |
| Power: 180W | |
| Machine Size: 870(L) x 680(W) x 480(H) mm | |
| PCB Applicable Dimensions | Max Size: 310 x 1500 mm |
| Board Size with Tray Enabled: 140 x 1500 mm | |
| Software & Services | System Updates: Supports remote system updates |
| Technical Support: Lifetime technical support and system updates |
