Highlight and detail

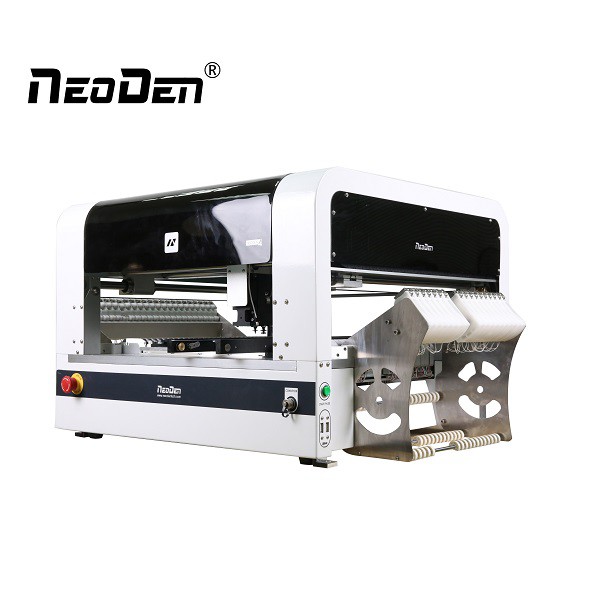

NeoDen4 is a desktop Pick and Place machine with vision system. As a professional PnP machine designer and developer, NeoDen has been doing research in SMT industry from 2010.
NeoDen4 is with dual cameras, auto rails, auto electronic feeders and 4 placement heads, which could help to handle 0201, BGA, QFN and 0.8m/1.2m/1.5m LED strip.
NeoDen4 is the best choice to satisfy all demands of high precision, high capacity, stable performance and low cost. This is a huge breakthrough not only for NeoDen, but also for small and medium-sized enterprises, those who want to improve placement accuracy and speed up PCB assembly with a limited budget.
Electronic Feeders
On-line Dual Rails
Four High Precision Nozzles
NeoDen4 sMT pick and place equipment Parameter
| Performance Parameters | Placement Rate (Vision Off): 5,000 CPH |
| Placement Rate (Vision On): 4,000 CPH | |
| Alignment Method: Stage Vision | |
| Placement Accuracy: ±0.02 mm | |
| X-Y Repeatability: ±0.02 mm | |
| Rotation: ±180° | |
| Component Range | Min Component Size: 0201 |
| Max Component Size: 32*32 mm | |
| Maximum Component Height: 5 mm | |
| Feeding System | Tape Feeders: 48 pcs (all 8 mm) |
| Vibration Feeder: 5 pcs | |
| Tray Feeder: 5 pcs | |
| PCB Compatible Size | Max Size: 280 x 1500 mm |
| Board Size with 1 waffle Tray: 140 x 1500mm | |
| Auto Rails: 1.5 meters | |
| PCB Applicable Dimensions | Max Size: 310 x 1500 mm |
| Board Size with Tray Enabled: 140 x 1500 mm |
NeoDen4 SMT Machine Video
Our Service
1. More Professional service in PNP machine field.
2. Better manufacture ability.
3. Various payment term to choose: T/T, Western Union, L/C, Paypal.
4. High quality/Safe material/Competitive price.
5. Small order available.
6. Quickly response.
7. More safe and fast transport.
About NeoDen
Factory
Quick facts about NeoDen
- Established in 2010 with 100+ employees & 27,000+ Sq.m. factory of independent property rights, to ensure the standard management and achieve the most economic effects as well as saving the cost.
- Owned the own machining center, skilled assembler, tester and QC engineers, to ensure the strong abilities for NeoDen machines manufacturing, quality and delivery.
- 40+ global partners covered in Asia, Europe, America, Oceania and Africa, to successfully serve 10000+ users in all of the world, to ensure the better and faster local service and prompt response.
- 3 different R&D teams with total 25+ professional R&D engineers, to ensure the better and more advanced developments and new innovation.
- Skilled and professional english support&service engineers, to ensure the prompt response within 8 hours, solution provides within 24 hours.
- The unique one among all of the Chinese manufacturers who registered and approved CE by TUV NORD.
- NeoDen supplies life-long technical support and service for all of the NeoDen machines, moreover, regular software updates based on the using experiences and actual daily request from the endusers.
Exhibition
Certification
FAQ
Q1. Can NeoDen4 place 0201 components?
Yes.
NeoDen4 supports 0201 components when using the vision placement system. The dual vision system equipped with industrial CCD cameras helps identify and calibrate components, improving placement accuracy for small components from 0201 packages.
For manufacturers working with miniature electronic components, NeoDen4 provides a more consistent solution compared with manual placement.
Q2. Can NeoDen4 place BGA components?
Yes.
NeoDen4 supports BGA component placement with the assistance of its dual vision system.
The up-looking and down-looking cameras help identify and calibrate components, improving placement accuracy for advanced packages including BGA.
Q3. Can NeoDen4 place QFN components?
Yes.
NeoDen4 supports QFN component placement.
Its vision-assisted placement system helps accurately identify component positions and improve alignment performance for fine-pitch packages.
Q4. What is the largest component NeoDen4 can place?
NeoDen4 supports components up to TQFP240.
According to the technical specifications, the component size range with vision starts from 0201 and extends up to TQFP240, allowing the machine to handle both miniature passive components and larger IC packages.
Q5. What is the placement accuracy of NeoDen4?
NeoDen4 provides high-precision placement with:
- Positioning accuracy: ±0.02 mm
- X-Y repeatability: ±0.02 mm
The combination of vision calibration, precision nozzles, and controlled movement helps maintain stable placement performance for prototype and small-batch SMT production.
