Highlight and Details
1. 8 heads with fully closed-loop control system support to pick up components simultaneously with maximum speed 20,000CPH.
2. Support 80 tape feeders, 20 stick feeders and 60 tray feeders, which achieve . Allows mixed use of electric and pneumatic feeders in the same feeder base.
3. Applicable to 1,500mm long board using an extension conveyor (optional).
4. Measuring of nozzle air pressure to improve work stability and eliminate obstacles.
5. Front and rear with 2 fourth generation high speed flying camera recognition systems, US ON sensors, 28mm industrial lens, for flying shots and high accuracy recognition.
6. Automatic nozzle change function has been added to the system. 39 nozzle positions increase the speed and flexibility of integrated placement.
7. IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change.
8. Increase the convenience of recycling material by adding a throw box.

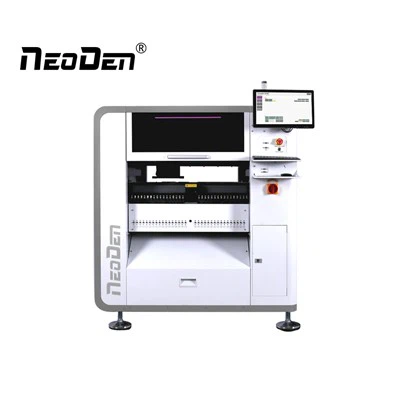

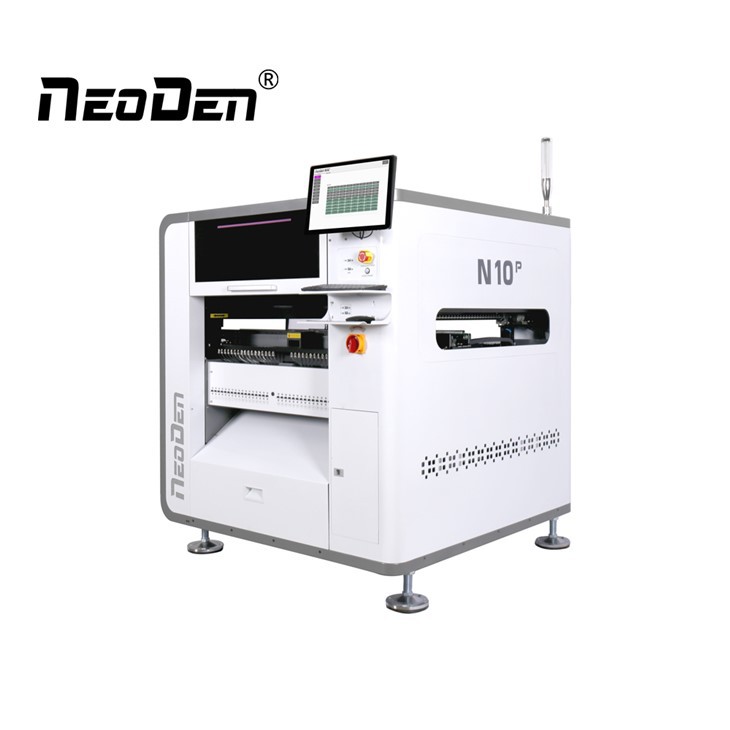

NeoDen N10P SMT Machine Parameter
| Basic Specifications | Model: NeoDen N10P |
| Number of Heads: 8 | |
| Drive System: Panasonic A6 750W Servo Motor | |
| Drive Method: WON Linear Guide / THK Grinding-Grade Ball Screw C5-2040 | |
| Motion Feedback: SPM/IBG Magnetic Linear Encoder | |
| Performance Parameters | Max. Placement Speed: 20,000 CPH |
| Positioning Accuracy: ±0.01 mm | |
| Control System: Fully Closed-Loop Control System | |
| Vision System: Dual Mark Camera + Front Flying Camera + IC Camera | |
| Component Range | Min. Component Size: 0201 |
| Max. Component Size: 40 * 40 mm | |
| Max. Component Height: 16 mm | |
| Flying Camera Component Range: 0201 - 22 × 22 mm | |
| IC Camera Max. Recognition Size: 50 mm × 50 mm | |
| Feeding System | Tape Feeder Capacity: 80 (all 8 mm) |
| Number of IC Trays: 10 | |
| Automatic Nozzle Changer: 39 Nozzle positions | |
| PCB Applicable Size | Max PCB Size (without IC Tray): 450 mm × 1500 mm |
| Max PCB Size (with IC Tray): 395 mm × 1500 mm | |
| PCB Thickness: 0.2 - 3.5 mm | |
| Hardware and Power Supply | Machine Dimensions: 1289 × 1254 × 1386 mm |
| Net Weight: 1000 kg | |
| Rated Power: 600W | |
| Power Requirements: Single-phase, 220V/110V, 50Hz/60Hz | |
| Air Supply Pressure: 0.6 MPa - 0.8 MPa | |
| Air Supply Flow Rate: 37 L/min |
NeoDen n10P Video
Our Service
1. More Professional service in PNP machine field.
2. Better manufacture ability.
3. Various payment term to choose: T/T, Western Union, L/C, Paypal.
4. High quality/Safe material/Competitive price.
5. Small order available.
6. Quickly response.
7. More safe and fast transport.
Formulate the measures to reduce/avoid big problem
The most easily appeared problem during work are placement wrong components and placement misaligned. Supply below measures for ref.
① It needs to check whether the components package is matched with related feeder.
② As to tape reel feeder, when ran out of one reel, operator must check whether newly changed tape reel is correct or not.
③ After programming, operator must double check the component number, placement position, and angle are correct for each placement step.
④ Operator must check the first finished PCB of each file. If any problem, please find solutions such as revise program to solve it.
⑤ To check the placement position misaligned or not, component loss problem in regular work. Find reason in time and solve it.
⑥ Set pre-welding detection station (manual or AOI).
In sum, P&P machine's running speed and placement accuracy still has limit. Peoples work is important to run machine on its proper role. So, it's necessary to comply with effective measures to keep machine normal work, its placement quality and efficiency.
