Highlight and Details

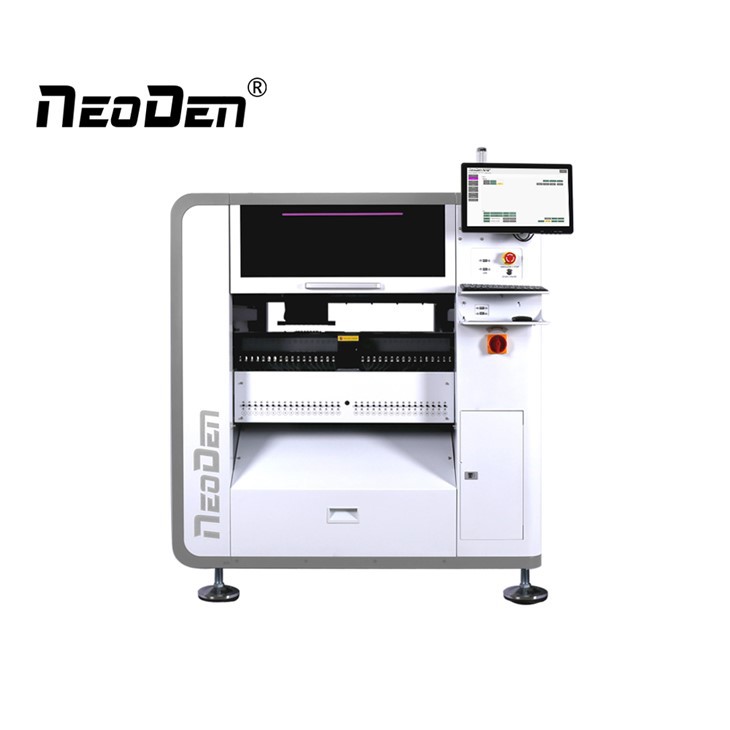

NeoDen N10P features 8 placement heads and employs a fully closed-loop control system, ensuring stable operation and high precision, making it an ideal choice for boosting production capacity.
- Front and rear with 2 fourth generation high speed flying camera recognition systems, US ON sensors, 28mm industrial lens, for flying shots and high accuracy recognition.
- Ultimate Efficiency and Closed-Loop Control: High-Speed Performance: Equipped with 8 high-precision placement heads and a fully closed-loop control system, it achieves a stable placement speed of up to 20,000 CPH, significantly boosting production line capacity.
- Precision Vision & IC Auto-Calibration: High-definition IC vision: The enhanced IC camera optimizes imaging dimensions for IC components. Combined with auto-nozzle switching, it enables automatic IC component calibration for high-precision placement.
- Stable Feeding & Ultra-High Capacity: 80 feeder positions: The machine supports up to 80 tape-and-reel feeders, significantly increasing single-setup feeding capacity. Simultaneously, feeder mounts support mixed use of electric and pneumatic feeders.
NeoDen N10P SMT Machine Parameter
| Performance Parameters | Max. Placement Speed: 20,000 CPH |
| Positioning Accuracy: ±0.01 mm | |
| Component Range | Min. Component Size: 0201 |
| Max. Component Size: 40 * 40 mm | |
| Max. Component Height: 16 mm | |
| Flying Camera Component Range: 0201 - 22 × 22 mm | |
| IC Camera Max. Recognition Size: 50 mm × 50 mm | |
| Feeding System | Tape Feeder Capacity: 80 (all 8 mm) |
| Number of IC Trays: 10 | |
| Automatic Nozzle Changer: 39 Nozzle positions |
Requirements for operator
- Operator should get a basic operator training, which should cover fully all the skills and knowledge needed to safely operate the type of pick and place machine.
- Operating strictly against equipment's instruction. Don't use machine with problems. Stop the machine once malfunction appears and contact with the after-sales service staff, restart to work after problem solved.
- Operator should be concentrated:
- Observation-- to see whether there is abnormal situation, such as peel-box doesn't work, plastic tape is broken etc.
- Listening-- whether have strange sound, such as noise from placement head, sound of loss component, strange noise of conveyor etc.
- Handwork-- solve some small problems in time, such as install feeder, correction placement position etc. If the main machine body or circuit problem, please consult after-sales staff. Formulate measures to reduce/ avoid big problem.
FAQ
Q1. Why does NeoDen N10P fail to pick components?
Possible causes include:
- Incorrect nozzle selection
- Dirty nozzle
- Insufficient vacuum
- Incorrect feeder position
- Wrong component parameters
Check pickup settings and nozzle condition before restarting production.
Q2. Why does NeoDen N10P place components incorrectly?
Common causes include:
- Incorrect PCB coordinates
- Wrong component package data
- Vision calibration issues
- PCB positioning errors
Verify programming data and vision recognition settings.
Q3. Why does NeoDen N10P fail to recognize components?
Possible reasons:
- Incorrect component size information
- Dirty camera lens
- Poor component placement condition
- Incorrect recognition parameters
Q4. Why does NeoDen N10P show nozzle errors?
Check:
- Nozzle installation
- Nozzle cleanliness
- Nozzle type compatibility
- Automatic nozzle changer status
N10P supports automatic nozzle changing with 39 positions.
Q5. Why is PCB alignment inaccurate?
Check:
- PCB size settings
- Mark recognition parameters
- PCB positioning
- Rail adjustment
Dual Mark Cameras help improve PCB positioning accuracy.
Q6. Why is placement speed lower than expected?
Actual speed depends on:
- PCB complexity
- Vision usage
- Component types
- Feeder arrangement
Maximum placement speed is up to 20,000 CPH.
