Highlight and Details
1. Support PCB within size (L)1500 * (W)450 mm.
2. Automatic nozzle change function has been added to the system. 39 nozzle positions increase the speed and flexibility of integrated placement.
3. IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change.
4. Automatic calibration of nozzle height.
5. Increase the convenience of recycling material by adding a throw box.
6. 80 tape feeders to increase the number of simultaneous feeding capacity.
7. Measuring of nozzle air pressure to improve work stability and eliminate obstacles.
8. Optimized software design to improve ease of use and stability.

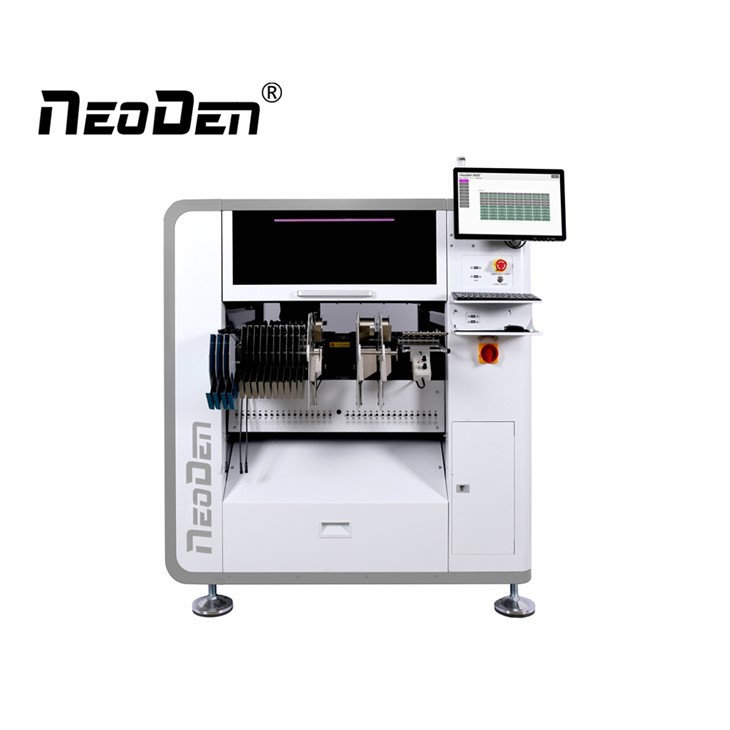

NeoDen N10P SMT Machine Parameter
| Basic Specifications | Model: NeoDen N10P |
| Number of Heads: 8 | |
| Drive System: Panasonic A6 750W Servo Motor | |
| Drive Method: WON Linear Guide / THK Grinding-Grade Ball Screw C5-2040 | |
| Motion Feedback: SPM/IBG Magnetic Linear Encoder | |
| Performance Parameters | Max. Placement Speed: 20,000 CPH |
| Positioning Accuracy: ±0.01 mm | |
| Control System: Fully Closed-Loop Control System | |
| Vision System: Dual Mark Camera + Front Flying Camera + IC Camera | |
| Component Range | Min. Component Size: 0201 |
| Max. Component Size: 40 * 40 mm | |
| Max. Component Height: 16 mm | |
| Flying Camera Component Range: 0201 - 22 × 22 mm | |
| IC Camera Max. Recognition Size: 50 mm × 50 mm | |
| Feeding System | Tape Feeder Capacity: 80 (all 8 mm) |
| Number of IC Trays: 10 | |
| Automatic Nozzle Changer: 39 Nozzle positions | |
| PCB Applicable Size | Max PCB Size (without IC Tray): 450 mm × 1500 mm |
| Max PCB Size (with IC Tray): 395 mm × 1500 mm | |
| PCB Thickness: 0.2 - 3.5 mm | |
| Hardware and Power Supply | Machine Dimensions: 1289 × 1254 × 1386 mm |
| Net Weight: 1000 kg | |
| Rated Power: 600W | |
| Power Requirements: Single-phase, 220V/110V, 50Hz/60Hz | |
| Air Supply Pressure: 0.6 MPa - 0.8 MPa | |
| Air Supply Flow Rate: 37 L/min |
NeoDen n10P Video
Packaging & Shipping
Packaging:
One piece in one wooden case
Suitable quantity to an export wooden case
other packing accessories in regular
Customer required packing is available
Shipping: by air, sea, or express
Delivery time: about 15~30 days after order details and production confirmed.
Reinforce daily maintenance
P&P machine is that high-accuracy device which requires a clean working environment with constant temperature and humidity, so it's necessary to have a routine maintenance.
Requirements for operator
① Operator should get a basic operator training, which should cover fully all the skills and knowledge needed to safely operate the type of pick and place machine.
② Operating strictly against equipment's instruction. Don't use machine with problems. Stop the machine once malfunction appears and contact with the after-sales service staff, restart to work after problem solved.
③ Operator should be concentrated:
- Observation-- to see whether there is abnormal situation, such as peel-box doesn't work, plastic tape is broken etc.
- Listening-- whether have strange sound, such as noise from placement head, sound of loss component, strange noise of conveyor etc.
- Handwork-- solve some small problems in time, such as install feeder, correction placement position etc. If the main machine body or circuit problem, please consult after-sales staff. Formulate measures to reduce/ avoid big problem.
FAQ
Q1. How can I buy machine from you?
A: (1)Consult us on line or by e-mail.
(2)Negotiate and confirm the final price, shipping, payment method and other terms.
(3)Send you the proforma invoice and confirm your order.
(4)Make the payment according to the method put on proforma invoice.
(5)We prepare your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
(6)Send your order via express or by air or by sea.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
Q3. Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT equipments.
