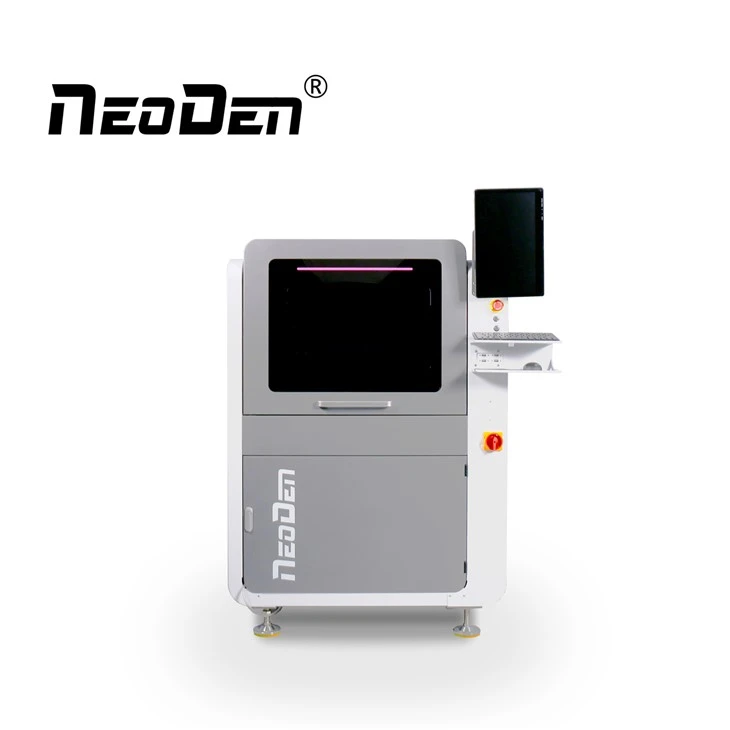

Full-Auto Printer

Full-Auto Printer

NeoDen ND450 Full-Auto Printers, Empowering Your SMT Production Line Design.
● ±0.02 mm Repeat position accuracy
● 450 x 350 mm PCB size (Max)
● 0.4 - 4 mm PCB thickness

Full CNC machining ensures the flatness of the lifting platform. The internal 45-degree guide rail design allows for rapid adaptation to PCBs of varying thicknesses. Utilizes a water pump and one-way valve, paired with a safety circuit, to ensure stability and safety during operation.
Send Inquiry

Functional Description of Key Modules of ND450

1. High-Precision Stencil Fixing Bracket

All crossbeams are CNC-machined to ensure precision.

The guide rails on the left and right crossbeams utilize high-precision linear guides, ensuring zero front-to-back backlash once locked.

Both the stencil and the stencil frame are secured using dual-action pneumatic cylinders, guaranteeing both convenience and reliability.

2. 3-Axis PCB Adjustment Platform.

Features an integrated 3-axis module design, ensuring stability and consistency.

Incorporates a specialized lead screw and nut backlash elimination mechanism to guarantee the precision of PCB position correction.

3. Cleaning Fluid Spray Module

Utilizes a water pump and one-way valve, paired with a safety circuit, to ensure stability and safety during operation.

4. High-Precision Mark Camera

Featuring an integrated dual-camera design (top and bottom), it ensures stability and consistency throughout the operational process. Equipped with a 6-channel light source, it effectively adapts to imaging surfaces with varying reflective properties.

5. High-Precision Magnetic Grating Feedback Module

Both camera beams are designed with a high-precision magnetic grating feedback system, ensuring stability and precision during the printing process.

ND450 Automatic SMT Solder Paste Printer
ND450 Automatic SMT Solder Paste Printer
ND450 Automatic SMT Solder Paste Printer




NeoDen ND450 Parameter

PCB Parameters PCB Size: 450 × 350 mm (Max)
Transfer Max Rate: 0 - 400 mm/s (Max)
PCB Thickness: 0.4 - 4 mm
Printing Parameters Print Head: Floating intelligent printing head (two independent direct connected motors)
Stencil Frame Size: 400 × 300 mm ~ 550 × 650 mm
Printing Pressure: 0.5 - 10 kg
Performance Parameters Image Calibration Repeatability: ± 0.02 mm
Printing Repeatability: ± 0.025 mm
Cycle Time: 12-18 s/p
Equipment Information Dimension: 992 × 1305 × 1430 mm
Net Weight: 350 kg



Daily Inspection Items

  Check the following items

Before turning on the power of the printer​ Inspect the following items
  1. Temperature and Humidity: Temperature between 20℃～26℃, humidity between 45%～70%.
  2. Indoor Environment: Require clean air, free of corrosive gases.
  3. Ensure no useless junk on the transportation rail and within the moving range of the squeegee.
  4. Ensure no useless junk on the camera; check if the lens is clean.
  5. Ensure no useless junk on the thimble platform.
  6. Check if the clamp plate rebounds normally.
  7. Check the connection of air connectors, air tubes, etc.
  8. Check if the air pressure is up to the standard.

After turning on the power of the printer​ Inspect the following items
  1. After starting the system, check if the machine homing is normal. When the rail automatically recognizes the width, check if the Mark point recognition on the rail is normal.
  2. Check if the emergency switch works properly.
  3. Check if the squeegee can correctly return to the starting point (origin).
  4. Check for abnormal noise when the squeegee moves.
  5. Check if the PCB runs smoothly on the rail; check if the sensor is sensitive.
