Functional Description of Key Modules of ND450
1. High-Precision Adjustable PCB Lifting Platform:
Full CNC machining ensures the flatness of the lifting platform. The internal 45-degree guide rail design allows for rapid adaptation to PCBs of varying thicknesses.
2. Electric + Air-Suspension Squeegee Head:
Through innovative electrical control and pneumatic circuit designs, the squeegee pressure is continuously monitored, ensuring its stability throughout the printing process.
3. Cleaning Fluid Spray Module
Utilizes a water pump and one-way valve, paired with a safety circuit, to ensure stability and safety during operation.
4. High-Precision Mark Camera
Featuring an integrated dual-camera design (top and bottom), it ensures stability and consistency throughout the operational process. Equipped with a 6-channel light source, it effectively adapts to imaging surfaces with varying reflective properties.
5. High-Precision Magnetic Grating Feedback Module
Both camera beams are designed with a high-precision magnetic grating feedback system, ensuring stability and precision during the printing process.

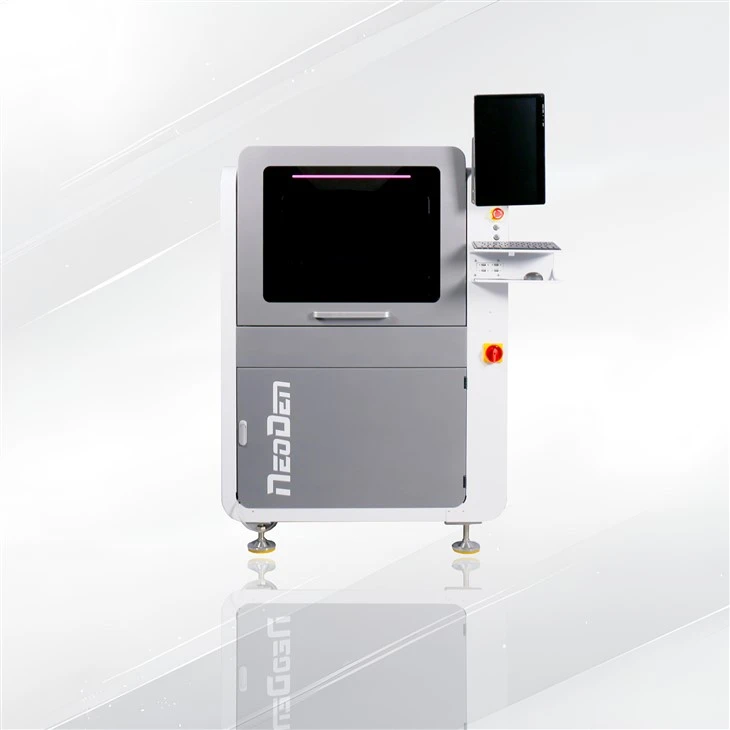

NeoDen ND450 Parameter
Machine Dimension: 992x1305x1430 mm
Machine Weight: 350 kg
Maximum frame Size: 550x650 mm
Minimum frame Size: 400x300 mm
Maximum PCB Size: 450x350 mm
Minimum PCB Size: 50x50 mm
Transfer height: 885 -- 920 mm
Demoulding speed: 0.1-30 mm/s
Demoulding length: 0-10 mm
Printing Speed: 1-100 mm/s
Printing Accuracy: ±0.025 mm
Printing Repeat Accuracy: ±0.025 mm
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
About NeoDen
Factory
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
- NeoDen products: Smart series PNP machine, NeoDen N10P, NeoDen9, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, IN12C, Solder paste printer FP2636, PM3040.
- Successful 10000+ customers across the globe.
- 30+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
- R&D Center: 3 R&D departments with 25+ professional R&D engineers.
- Listed with CE and got 50+ patents.
FAQ
Q1. Is daily maintenance complicated?
A. The design is very user-friendly. Daily tasks only involve checking the camera lens, air pressure, and ensuring no junk is on the Thimble Platform. Monthly, simply clean and lubricate the Lead Screw and Linear Guide. The manual provides a detailed Monthly Inspection Items list that can be easily completed by general technicians.
Q2. Which components can this machine support for printing?
A. Thanks to its ±0.025mm repetition positioning accuracy, the ND450 easily handles precision placement requirements, including:
- Micro-chip components such as 0201, 0402.
- Complex ICs like QFP, BGA, and SOT with a lead pitch greater than 0.3mm (within a 45x45mm range).
- Standard components like LED beads, diodes, and triodes.
Q3. How can I place an order?
A. You can contact any of our sales person for an order.
Please provide the details of your requirements as clear as possible.
So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, E-mail or WhatsApp or other instant ways, in case of any delays.
