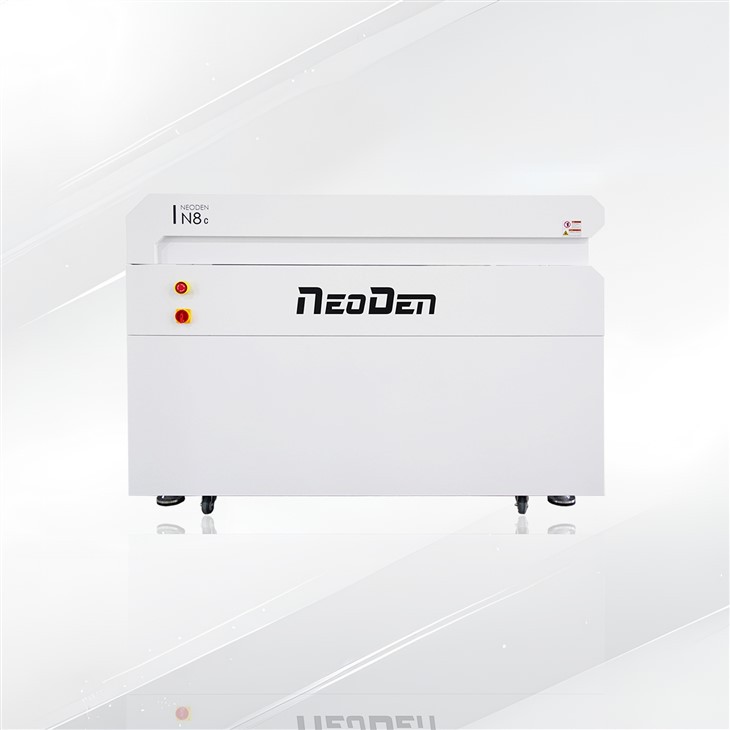

Decription of NeoDen IN8C
1. NeoDen IN8C is a new environmentally friendly, stable performance intelligent automatic orbital reflow soldering. This reflow solder adopts the exclusive patented design of "even temperature heating plate" design, with excellent soldering performance; with 8 temperature zones compact design, lightweight and compact; to achieve intelligent temperature control, with high-sensitivity temperature sensor, with stable temperature in the furnace, the characteristics of small horizontal temperature difference. While using Japan NSK hot air motor bearings and Switzerland imported Heating wire, durable and stable performance. And through the CE certification, to provide authoritative quality assurance.
2. Through the special airflow simulation software test optimized welding fume filtration system, can achieve the filtration of harmful gases at the same time to ensure that the equipment shell to maintain room temperature, reduce heat loss and reduce power consumption.
3. Unique heating plate design effectively ensures uniform cooling after the equipment stops heating, effectively preventing the parts from being damaged by the rapid decrease in temperature and the resulting deformation.
4. The internal temperature box is made of stainless steel, which is environmentally friendly and odorless, and the inner side is equipped with heat insulation cotton to effectively prevent heat loss.
5. Concealed screen design is convenient for transportation, easy to use, beautiful and generous.
6. The control system uses imported chips, temperature control accuracy of ± 0.5%.
7. All temperature zones and cold air zone wind speed adjustable, easily cope with a variety of welding needs.
8. Automatic limit after the top cover is opened, effectively ensure production safety.
NeoDen IN8C parameters
| Heating/Temperature Control System |
Number of Heating Zones: 8 Zone Design (4 upper / 4 lower) |
|
Heating Type: Full Hot Air Convection, Nickel-Chromium Wire and Aluminum Alloy Heating |
|
|
Cooling Zones: Top 4 Fans |
|
|
Temperature Control Range: Room temperature ~ 300 ℃ |
|
|
Temperature Control Accuracy: ± 0.2 ℃ |
|
|
Heat-up Time: Approx. 20-30 minutes |
|
|
Capacity/Process Parameters |
Applicable Components: 0201 micro-components and complex BGA chips |
|
Solder Height: Top 30 mm / Bottom 20 mm |
|
|
Conveyor System |
Conveyor Speed: 5 - 60 cm/min |
|
Conveyor Type: Track |
|
|
Track Direction: Left to Right |
|
|
Electrical Specifications |
Power Requirement: 110/220V |
|
Maximum Power: ~ 2KW |
|
|
Working Power: ~ 1500W |
|
|
Physical Specifications |
Equipment Dimensions (Benchtop) (L*W*H): 1660 * 612 * 500 mm |
|
Equipment Dimensions (Stand-alone) (L*W*H): 1660 * 607 * 1075 mm |
|
|
Net Weight: 200KG |
Our Service
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
6. Provide product instructions, YouTube video tutorials, experienced after-sales technicians, 24 hours online service.
7. With our own manufactory and more than 10 years of experience in SMT industry, we can provide customers with the most cost-effective products.
About NeoDen
Factory
Exhibition
Certification
FAQ
Q1. Are you trading company or manufacturer?
A: We are professional manufacturer specialized in SMT production line.
And we trade our products with our clients directly.
Q2. How long is your delivery time?
A: The general delivery time is 15-30 days after receiving your order confirmation.
Anther, if we have the goods in stock, it will only take 1-2 days.
Q3. Which payment form you can accept?
A: T/T, Western Union, PayPal etc.
We accept any convenient and swift payment term.
Q4. What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q5. What's your term of the delivery?
A: Our ordinary delivery term is FOB Shanghai.
We also accept EXW, CFR, CIF, DDP, DDU etc.
We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
