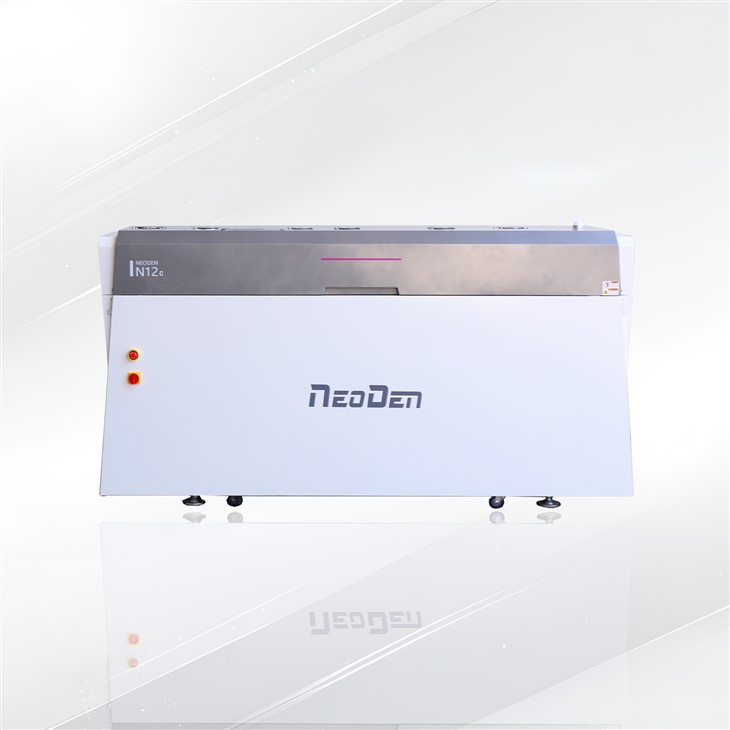

Highlights
- The control system has the characteristics of high integration, timely response, low failure rate, easy maintenance, etc.
- Unique heating module design, with high precision temperature control, uniform temperature distribution in the thermal compensation area, high efficiency of thermal compensation, low power consumption and other characteristics.
- Hot air convection, excellent welding performance.
- High-precision profile process to complete the mesh chain wheel, with a unique support structure can effectively reduce the vibration of the PCB board in the reflow area, easily cope with the welding of small devices of the 0201 class and BGA class complex chips.
- Independent circulating air design of the cooling area, completely isolated from the external environment on the internal temperature cavity.
- Through the special airflow simulation software test optimized welding fume filtration system, can achieve the filtration of harmful gases at the same time to ensure that the equipment shell to maintain room temperature, reduce heat loss and reduce power consumption.
Products Description
| Heating/Temperature Control System |
Number of Heating Zones: 12 Zone Design (6 upper / 6 lower) |
|
Heating Type: Hot Air Convection |
|
|
Heating Element: High-Performance Aluminum Alloy Heating Plate (Non-Traditional Heating Tubes) |
|
|
Temperature Control Range: Room temperature ~ 300 ℃ |
|
|
Temperature Measurement System: Professional 4-channel real-time PCB surface temperature monitoring |
|
|
Heat-up Time: Approx. 30 minutes |
|
|
Capacity/Process Parameters |
Maximum PCB Width: 300 mm |
|
Solder Fume Treatment: Built-in solder fume filtration system |
|
|
Max Height: Top 30mm / Bottom 15mm |
|
|
Conveyor System |
Conveyor Speed: 50 - 600 mm/min |
|
Conveyor Type: Rail |
|
|
Track Direction: Left to Right |
|
|
Electrical Specifications |
Power Supply: 220V |
|
Typical Working Power: Approx. 2.2KW |
|
|
Physical Specifications |
Equipment Dimensions (L*W*H): 2300 * 900 * 1300 mm |
|
Net Weight: 300 KG |
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
