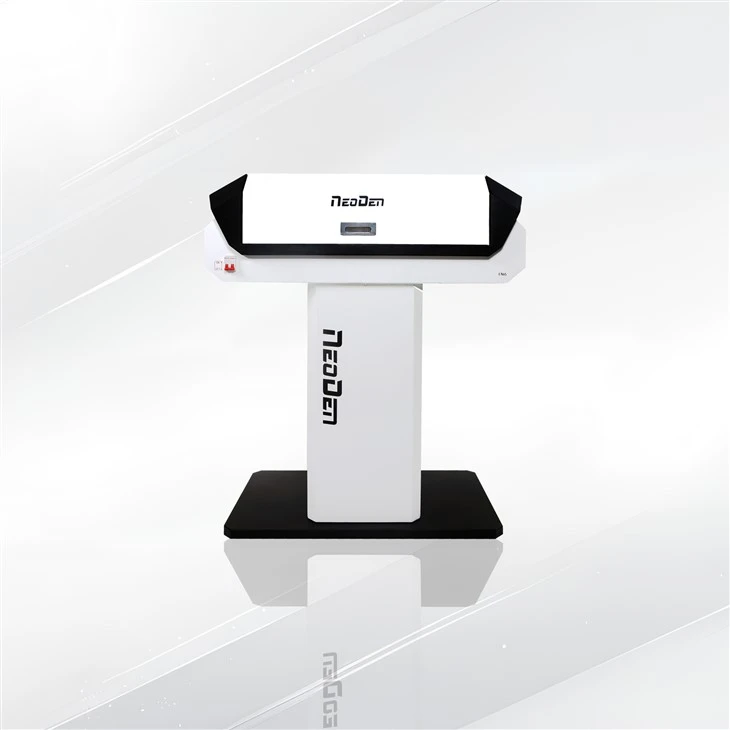

Description of NeoDen IN6 small soldering machine
- Original high-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature difference is less than 2℃.
- Original built-in soldering smoke filtering system, elegant appearance and eco-friendly.
- Heat insulation protection design, the casing temperature can be controlled within 40℃.
- Household power supply, convenient and practical.
- NeoDen IN6 provides effective reflow soldering for PCB manufacturers.
- The table-top design of the product makes it a perfect solution for production lines with versatile requirements. It is designed with internal automation that helps operators provide streamlined soldering.
- Temperature can be controlled with extreme accuracy-users can pinpoint heat within 0.2°C.
NeoDen IN6 small soldering machine parameters
| Power requirement | 110/220VAC 1-phase |
| Power max. | 2KW |
| Heating zone quantity | upper 3 / down 3 |
| Conveyor speed | 5 - 30 cm/min (2 - 12 inch/min) |
| Standard Max Height | 30mm |
| Temperature control range | Room temperature~300 degree celsius |
| Temperature control accuracy | ±0.2 degree celsius |
| Temperature distribution deviation | ±1 degree celsius |
| Soldering width | 260 mm (10 inch) |
| Length process chamber | 680 mm (26.8 inch) |
| Heat-up time | approx. 25 min |
| Dimensions | 1020 * 507 * 350 mm (L*W*H) |
| Packing Size | 1120 * 620 * 560 mm |
| N.W./ G.W. | 49 kg / 64 kg (without working table) |
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
About NeoDen
Factory
Quick facts about NeoDen
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist on everywhere.
- We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.
- Well-trained engineers will offer you any technical support.
- 10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours.
- Professional solutions can be offered within 24 hours both workday and holidays.
Exhibition
Certification
FAQ
Q1. How can I place an order?
A. You can contact any of our sales person for an order
Please provide the details of your requirements as clear as possible.
So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, E-mail or WhatsApp or other instant ways, in case of any delays.
Q2. What is your terms of delivery?
A. We accept EXW, FOB, CFR, CIF, etc.
You can choose the one which is the most convenient or cost effective for you.
Q3. How many square meters of your factory?
A. More than 27,000 square meter.
Q4. Is there the products tested before shipping?
A. Yes, of course.
All of our conveyor belt we all will has been 100% QC before shipping.
We test every batch every day.
Q5. How your quality guarantee?
A. We have 100% quality guarantee to customers.
We will be responsible for any quality problem.
Hot Tags: small soldering machine, China small soldering machine manufacturers, suppliers, factory
