Solder paste printing is a critical process in surface mount technology (SMT), where the quality of the print directly impacts the reliability and functionality of the final electronic product. One of the most common issues encountered during this process is the missing solder problem. As a solder paste printer supplier, I understand the frustration and challenges that come with this issue. In this blog post, I will share some effective troubleshooting methods to help you address the missing solder issue in a solder paste printer.
Understanding the Causes of Missing Solder
Before diving into the troubleshooting steps, it's essential to understand the potential causes of the missing solder issue. Here are some common factors that can lead to this problem:
1. Stencil Issues
- Clogged Apertures: Over time, solder paste can accumulate in the stencil apertures, blocking the flow of paste onto the PCB pads. This is often caused by improper cleaning of the stencil or using a stencil with a small aperture size.
- Damaged Stencil: Physical damage to the stencil, such as scratches or dents, can prevent the solder paste from being properly transferred to the PCB.
- Incorrect Stencil Thickness: Using a stencil with an incorrect thickness can result in insufficient solder paste being deposited on the pads, leading to missing solder.
2. Solder Paste Issues
- Dry or Expired Solder Paste: Solder paste that has dried out or expired may not flow properly through the stencil apertures, causing missing solder.
- Incorrect Solder Paste Viscosity: The viscosity of the solder paste plays a crucial role in its transferability. If the viscosity is too high, the paste may not flow easily through the stencil; if it's too low, the paste may slump and cause bridging.
- Contaminated Solder Paste: Contamination of the solder paste with foreign particles or moisture can affect its performance and lead to missing solder.
3. Printer Settings
- Incorrect Print Speed: Printing too fast can cause the solder paste to be incompletely transferred to the PCB, resulting in missing solder. On the other hand, printing too slowly can lead to excessive paste deposition and bridging.
- Incorrect Print Pressure: Insufficient print pressure may not force the solder paste through the stencil apertures, while excessive pressure can damage the stencil and cause the paste to spread unevenly.
- Incorrect Separation Speed: The speed at which the stencil is separated from the PCB after printing can also affect the solder paste transfer. A too-fast separation speed can cause the paste to be pulled back into the stencil, resulting in missing solder.
4. PCB Issues
- Dirty or Oxidized Pads: Pads on the PCB that are dirty or oxidized may not allow the solder paste to adhere properly, leading to missing solder.
- Incorrect Pad Design: Poorly designed pads, such as pads that are too small or too close together, can make it difficult for the solder paste to be deposited correctly.
Troubleshooting Steps
Now that we've identified the potential causes of the missing solder issue, let's look at some troubleshooting steps to address them:
1. Check the Stencil
- Clean the Stencil: Regularly clean the stencil to remove any accumulated solder paste or debris. Use a suitable stencil cleaning solution and a soft brush to gently clean the apertures. Make sure to dry the stencil thoroughly before reuse.
- Inspect the Stencil for Damage: Carefully examine the stencil for any scratches, dents, or other physical damage. If the stencil is damaged, replace it with a new one.
- Verify the Stencil Thickness: Ensure that the stencil thickness is appropriate for the solder paste and the PCB design. Refer to the manufacturer's recommendations for the correct stencil thickness.
2. Evaluate the Solder Paste
- Check the Solder Paste Expiration Date: Make sure the solder paste is within its expiration date. Discard any expired solder paste and use fresh paste.
- Adjust the Solder Paste Viscosity: If the solder paste is too thick or too thin, adjust its viscosity according to the manufacturer's instructions. You can add a small amount of thinner or thickener to the paste to achieve the desired viscosity.
- Avoid Contamination: Store the solder paste in a clean and dry environment to prevent contamination. Use clean tools when handling the paste, and avoid exposing it to moisture or foreign particles.
3. Optimize the Printer Settings
- Adjust the Print Speed: Experiment with different print speeds to find the optimal setting for your application. Start with a slower speed and gradually increase it until you achieve the desired solder paste transfer.
- Fine-Tune the Print Pressure: Adjust the print pressure to ensure that the solder paste is properly forced through the stencil apertures. Too much pressure can damage the stencil, while too little pressure can result in missing solder.
- Set the Correct Separation Speed: The separation speed should be slow enough to allow the solder paste to adhere to the PCB pads but fast enough to prevent the paste from being pulled back into the stencil.
4. Examine the PCB
- Clean the PCB Pads: Use a suitable cleaning agent to remove any dirt, oxidation, or other contaminants from the PCB pads. Make sure the pads are completely dry before printing.
- Review the Pad Design: Check the pad design to ensure that it is compatible with the stencil and the solder paste. If necessary, make adjustments to the pad size, shape, or spacing.
Additional Tips
- Regular Maintenance: Perform regular maintenance on your solder paste printer to keep it in good working condition. This includes cleaning the printer components, lubricating moving parts, and checking for any signs of wear or damage.
- Operator Training: Provide proper training to your operators on how to use the solder paste printer correctly. Make sure they understand the importance of following the recommended procedures and settings.
- Quality Control: Implement a quality control system to monitor the solder paste printing process. Regularly inspect the printed PCBs for any defects, such as missing solder, bridging, or uneven paste deposition.
Conclusion

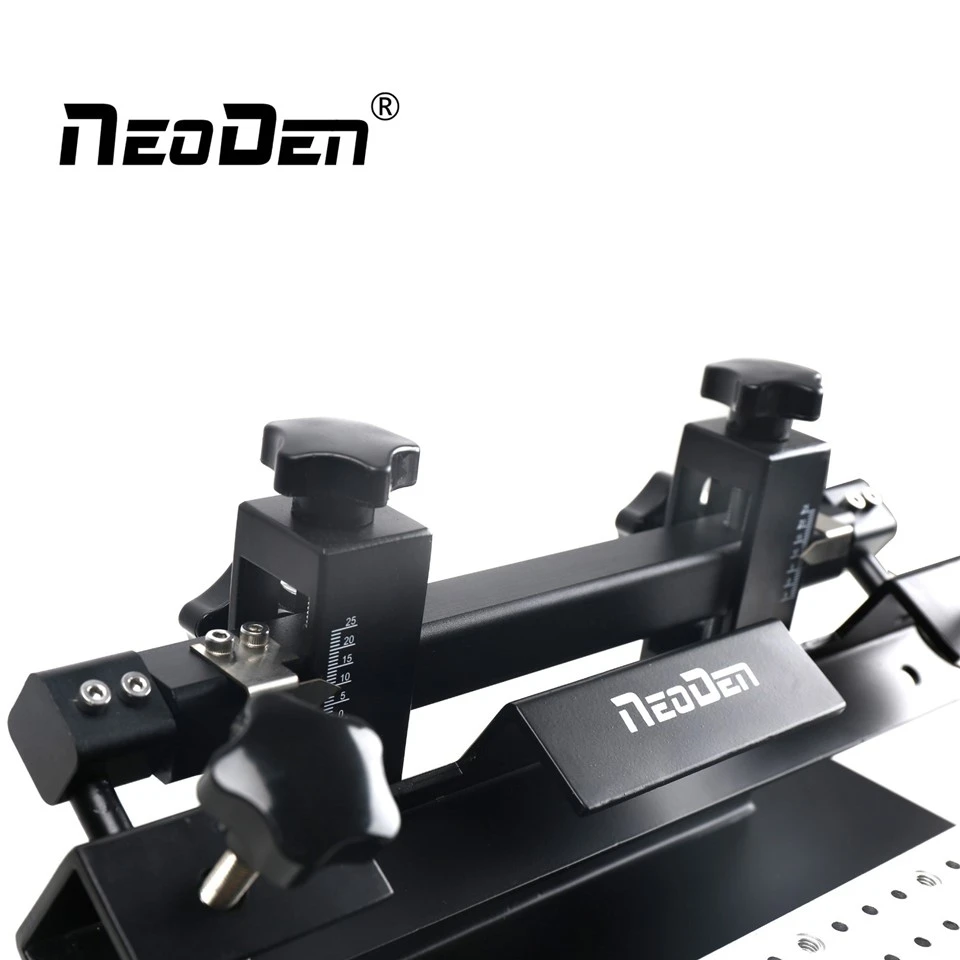

The missing solder issue in a solder paste printer can be a frustrating problem, but by understanding the potential causes and following the troubleshooting steps outlined in this blog post, you can effectively address this issue and improve the quality of your solder paste printing. As a solder paste printer supplier, we offer a range of high-quality Manual SMT Solder Paste Printer, Automatic SMT Paste Printer, and Semi Automatic PCB Printer to meet your specific needs. If you have any questions or need further assistance with troubleshooting the missing solder issue or selecting the right printer for your application, please don't hesitate to contact us for a procurement discussion.
