Name: China Stencil Printer PCB Manufacturers, Suppliers and Factory - NeoDen Tech
Brand: NeoDen
SKU: 312193364

Stencil Printer PCB

● ±0.2 mm repeatability
● PC & touchscreen intelligent control
● 400 x 240 mm PCB size (Max)

High efficiency, safety, and precision, suitable for small to medium batch production.

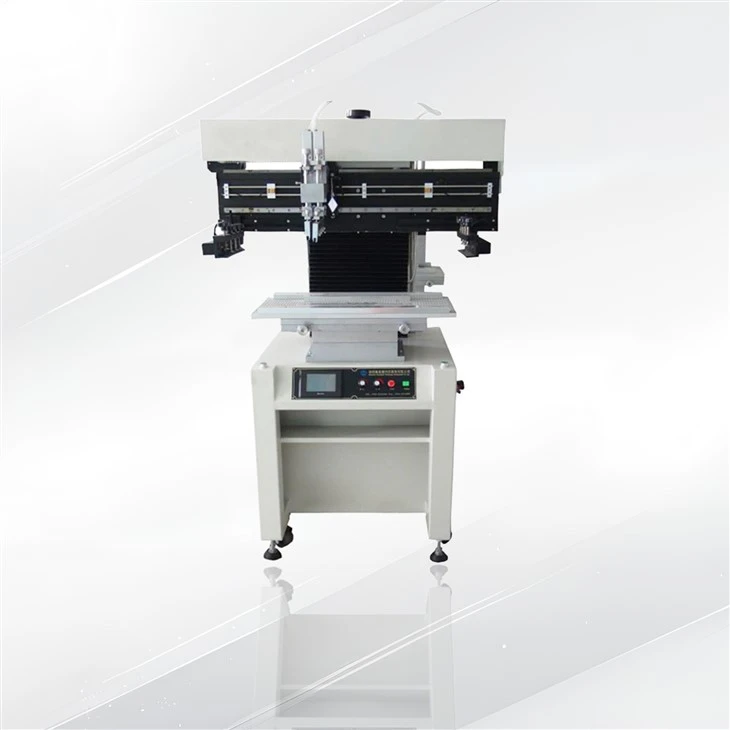

NeoDen YS350 SMT Soldering Paste Printer is the use of precision motor and linear rail set made of the use of scraping knife printing more stable.

Highlights and Details Of neoDen YS350

A. Intelligent Operation and Control

PC + Touchscreen Interface: Menu-driven operation offers simplicity and intuitiveness, reducing learning curves.
Print Count and Time Management: Real-time time display and print count logging facilitate production management.
Precise Squeegee Pause Settings: Independent adjustment of squeegee and stencil pause times optimizes printing processes and enhances first-pass yield.

B. Exceptional Printing Precision and Process

High Repeatability: Printing accuracy and repeatability both achieve ±0.2mm, ensuring quality printing for fine-pitch components.
Semi-Automatic Floating Squeegee: Squeegee freely floats and automatically levels with the stencil, guaranteeing uniform solder paste coverage.
Adjustable Squeegee Pressure: Pressure adjusts according to squeegee length, preventing under-printing or excessive scraping while extending stencil lifespan.
Adjustable Release Speed: The time (0-5 seconds) for the stencil to separate from the PCB is adjustable, effectively preventing solder paste trailing and improving release quality.

C. Safety and Compatibility

Safety Operation Design: Dual-hand button operation design ensures operator safety and equipment reliability.
Flexible PCB Positioning: Supports multiple methods including reference holes, reference edges, hybrid positioning, and stencil positioning, adapting to different board designs.
