Top 5 SMT Line Providers In 2026 (Complete Guide For PCB Assembly Manufacturers)

Introduction

In the electronics manufacturing services (EMS) industry, the efficiency and precision of surface mount technology (SMT) production lines directly determine product quality and a company's profit margins. With the advancement of Industry 4.0 and AI-driven smart manufacturing, selecting a reliable SMT equipment supplier is crucial.

This article will introduce five SMT production line suppliers. We will focus on the highly renowned NeoDen SMT and its fully automated turnkey solutions, while comparing them with several other brands to help you make the most informed investment decision.

NeoDen (Zhejiang NeoDen Technology Co., Ltd.) - A Global Leader in Smart SMT Solutions

1. Brand Background and Advantages

As a leading brand in the global small and medium-sized SMT production line sector, NeoDen has been committed to providing cost-effective, high-precision, fully automated production equipment to electronics manufacturers worldwide since its inception.

NeoDen offers one-stop, fully automated production line solutions. Its products have passed rigorous CE certification and are exported to over 140 countries and regions worldwide. NeoDen's core strength lies in providing turnkey fully automated production line solutions. Its equipment not only holds TUV CE certification but also features deeply internationalized software logic, user interfaces, and remote support, specifically designed for global users seeking high efficiency and low maintenance costs.

2. Analysis of NeoDen's Core Fully Automated Production Line Products

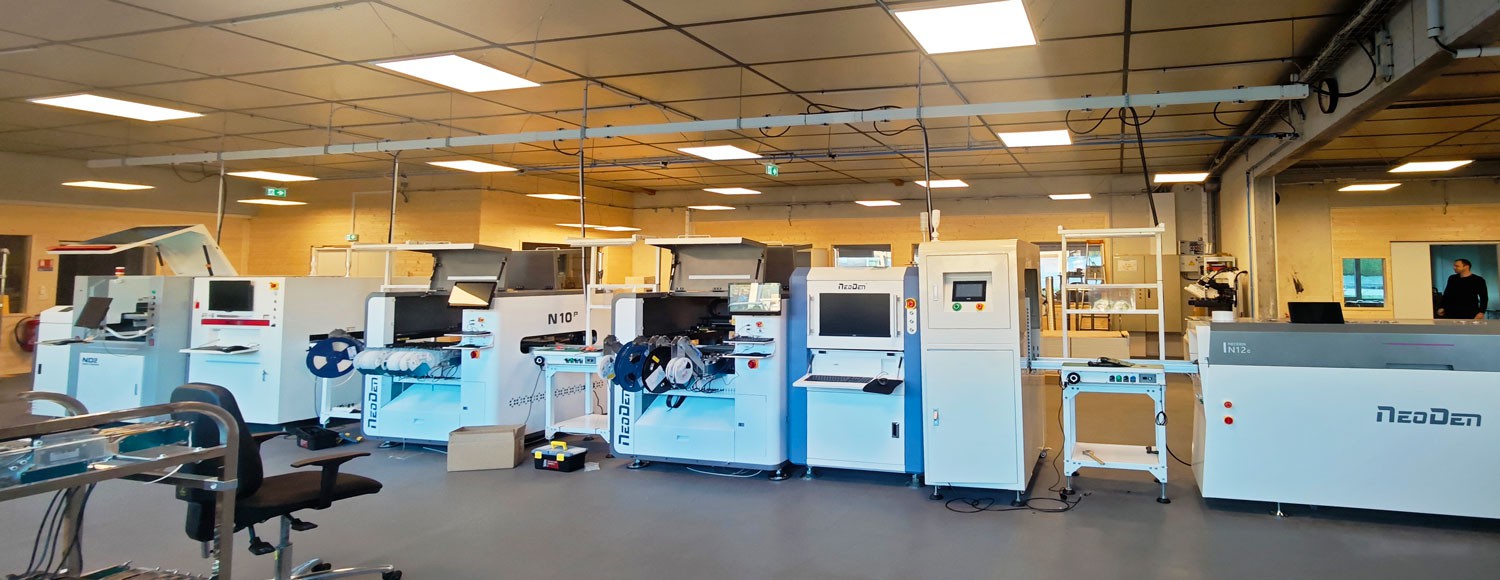

To achieve true unmanned operation or minimal manual intervention, NeoDen has introduced a fully automated SMT production line comprising five core modules. Below are the technical highlights of the key equipment in each stage:

① High-Precision Fully Automatic Screen Printer: ND450 (Solder Paste Printer)

As the first process in the production line, the ND450 ensures extreme consistency in solder paste printing.

• Electrically Controlled Floating Squeegee Head: Features an innovative electrical and pneumatic design with continuous pressure monitoring to maintain constant pressure during printing, eliminating issues such as missed prints or excessive paste thickness.
• High-Precision Stencil Clamping: Utilizes dual-acting pneumatic cylinders for clamping, combined with CNC-machined crossbeams and high-precision linear guides, ensuring zero backlash after locking.
• 3-Axis PCB Adjustment Platform: An integrated 3-axis modular design, combined with a dedicated lead screw and nut mechanism to eliminate backlash, ensures extremely high precision in PCB position correction.
• Intelligent Cleaning System: Features a highly efficient stencil bottom cleaning module, coupled with a vacuum system, to ensure the stencil is as clean as new for every print.

② Solder Paste Inspection System: S1 SPI (Solder Paste Inspection)

After solder paste printing, the S1 SPI monitors print quality in real time to prevent defects from proceeding to the next process.

• High-precision imaging: Utilizes industrial-grade high-speed cameras to accurately detect solder paste volume, area, height, and offset.
• Closed-Loop Feedback: The S1 can synchronize data with the printer and pick-and-place machine to automatically adjust production parameters, significantly improving yield.

③ High-Speed Multi-Function Pick-and-Place Machine: N10P (Pick and Place Machine)

This is the core of the production line, responsible for precisely placing components onto the PCB.

• Exceptional Throughput: Equipped with 8 placement heads, it achieves a maximum speed of 20,000 CPH with placement accuracy as high as ±0.01mm.
• Intelligent Nozzle Change Function: Features 39 nozzle stations with automatic change capabilities, greatly enhancing production flexibility.
• Vision Recognition System: Utilizes a fourth-generation high-speed flying camera recognition system (ON Sensors, USA, with a 28mm industrial lens), supporting real-time imaging during operation to ensure both high efficiency and high precision.
• Support for Extra-Long Boards: Accommodates PCBs up to 1500 × 450 mm, making it ideal for the production of LED light strips and large backplanes.
• Feeding System: Supports up to 80 tape feeders and is compatible with a mix of electric and pneumatic feeders.

④ Eco-Friendly 12-Zone Reflow Oven: IN12C (Reflow Oven)

The NeoDen IN12C is an intelligent, automatic conveyor-type reflow oven that combines environmental friendliness with stable performance.

• Patented uniform heating plate: A unique heating module design ensures high thermal compensation efficiency, low power consumption, and minimal temperature variation across the surface.
• 12-zone heating design: Compact yet powerful, featuring heating elements imported from Switzerland and a Japanese NSK hot-air motor to ensure long-lasting durability.
• Built-in filtration system: Equipped with a soldering fume filtration system that effectively captures harmful gases, meeting the standards of high-end laboratories and cleanrooms.
• Energy-efficient and low power consumption: Operating power is only approximately 2.2 kW, resulting in significant savings on electricity costs compared to similar products.

⑤ Automatic Optical Inspection (AOI) Machine: ND800

Serving as the final quality control line of defense, the ND800 performs comprehensive inspection of finished PCBs.

• Comprehensive defect coverage: Detects various soldering defects, including missing components, misalignment, vertical placement, flipped components, short circuits, and cold solder joints.
• Intelligent algorithms: The software system is simple and intuitive, supporting lens calibration and automatic registration to quickly establish inspection programs.
• Stability: Monitors XY-axis origin signals and limit switches to ensure the camera's field of view covers the entire work area.

I.C.T SMT

• Type: SMT Turnkey Solution Provider
• Positioning: One-Stop Factory Solutions
• Capabilities
• Provides turnkey factory setup solutions (equipment + planning + technical support)
• Covers complete processes including SMT, DIP, and coating
• Includes a full range of equipment such as pick-and-place machines, reflow ovens, AOI, and conveyor systems
• Features
• "turnkey" projects
• Supports factory planning and long-term technical services

STG

• Type: Turnkey Line Integrator
• Positioning: End-to-End SMT Production Line Solutions

KINGSUN Automation

• Type: SMT Turnkey Equipment Manufacturer
• Positioning: Cost-effective turnkey solutions
• Capabilities
• Provides full-process equipment from printing and placement to inspection
• Supports automated production line configurations (semi-automatic/fully automatic)
• Features
• Focuses on cost control and efficiency
• Suitable for small and medium-sized electronics manufacturing enterprises

UPKTECH

• Type: Comprehensive SMT Solutions Provider
• Focus: Equipment + Complete Production Lines + Used Equipment Integration
• Capabilities
• Provides complete sets of SMT production line equipment
• Integrates equipment from brands such as Panasonic, FUJI, and Yamaha
• Offers customized production line solutions
• Features
• Flexible combination of new and used equipment
• Suitable for budget-conscious customers

Quick Comparison (For Easy Understanding)

How to Choose the Right SMT Production Line for You?

When selecting an SMT supplier, be sure to consider the following key metrics:

• Overall Production Efficiency (CPH vs. Real Speed): The NeoDen N10P ensures high actual output through in-flight recognition.
• Factory Space Utilization: Compact, low-power designs like the NeoDen IN12C are ideal for modern small and medium-sized factories.
• Continuity of technological advancement: NeoDen continuously invests in R&D for AI inspection (ND800) and intelligent nozzle changing (N10P), ensuring that users purchase not just equipment, but technological assurance for years to come.

Conclusion

If you are looking for a fully automated SMT production line that is efficient, stable, and backed by world-class after-sales support, NeoDen is a good choice for you. The seamless integration of its ND450, N10P, and IN12C series not only enhances production precision but also significantly reduces labor costs and energy consumption.

As a pioneer in SMT technology, NeoDen will continue to lead the intelligent transformation of the electronics manufacturing industry. If you are interested in our fully automated production line solutions, please feel free to contact NeoDen official team or your local NeoDen distributor.
