Highlight and Detail
1. The average mounting speed can be reached at 9000CPH.
2. The max mounting speed can be reached at 14000CPH.
3. NeoDen independent Linux software, to ensure the flexible and expedient upgrading. As well as easier operation and faster training.
5. 1 - click optimization function:
A. Mounting sequences.
B. Quick calibration of the picking position.
6. Independent control of 6 placement heads, each head can be up and down separately, easy to pick up, and the standard effective mounting height reach 16mm, meet the requirements of flexible SMT processing.
7. Equips with the magnetic scale technology what used commonly in the well-known brands, realizing true closed-loop control, long-term assurance of stable placement accuracy as initial & new conditions, easy to calibrate accuracy without suppliers' engineers.

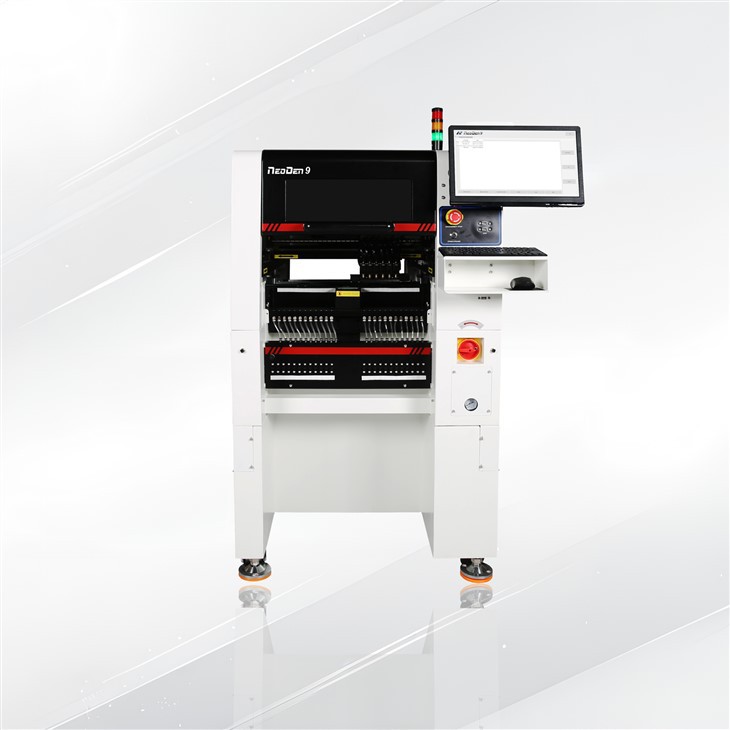

NeoDen9 pick and place device Parameter
| Number of Heads | 6 |
| Number of Tape reel Feeders | 53 (Yamaha Electric/Pneumatic) |
| Number of IC Tray | 20 |
| Placement Area | 460mm*300mm |
| MAX Mounting Height | 16mm |
| PCB Fiducial Recognition | High Precision Mark Camera |
| Component Recognition | High Resolution Flying Vision Camera System |
| Maximum Mounting Speed | 14,000 CPH |
| Average Mounting Speed | 9,000 CPH |
| Machine Weight | 500KG |
| Machine Dimension | L1220 mm * W800 mm * H1350 mm |
NeoDen9 SMT Machine Video
Packaging & Shipping
Packaging:
One piece in one wooden case
Suitable quantity to an export wooden case
Other packing accessories in regular
Customer required packing is available
Shipping: by air, sea, or express
Delivery time: about 15~30 days after order details and production confirmed.
FAQ
Q1. What should I do if placement accuracy decreases?
Check the following:
- Nozzle condition
- Vision calibration status
- PCB fixation
- Feeder installation
Q2. Why should I choose NeoDen9 instead of more expensive brands?
NeoDen9 delivers an excellent balance between performance and cost:
- Up to 14,000 CPH maximum speed
- Flexible for high-mix production
- Significantly lower investment than premium brands
Q3. Is NeoDen9 suitable for my factory?
NeoDen9 is a great fit if you:
- Run high-mix, low-to-mid volume production
- Frequently change product types (EMS/OEM)
- Want to upgrade from manual or semi-automatic assembly
- Need to control equipment investment risk
