Products Information
| Place of Origin | China |
| Brand Name | NeoDen |
| Model Number | NeoDen J08 |
Commercial Information
| Minimum Order Quantity | 1 pc |
| Packaging Details | Wooden Package |
| Delivery Time | 10-25 days |
| Payment Terms | 100% TT in Advance |
Description
Application

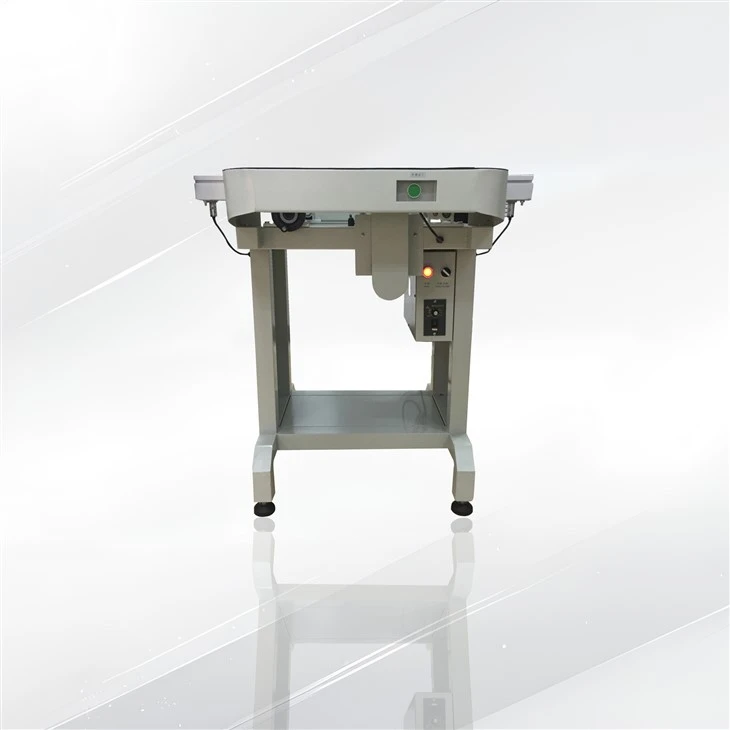

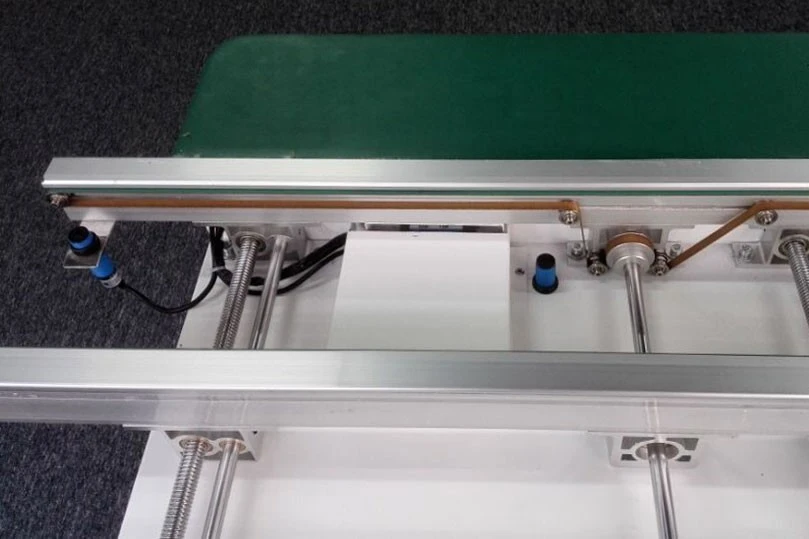

The External PCB conveyor (J08) is used to connect PCB equipment together into a production line, Visual Inspection stage in the Quality analysis process of any Electronic product development process, or even can use in the Manual PCB assembling or PCB buffering Functions.
Features
1. Precise adjustment of width.
2. Smooth running, PCB won't be stuck.
3. Speed adjustable.
Specification
|
Power supply |
Single Phase 220V 50/60HZ 50W |
|
|
Conveyor Length |
80 cm |
|
|
Conveying Belt |
ESD belt |
|
|
Conveying speed |
0.5 to 400 mm/min |
|
|
Packing Size |
880 * 720 * 310 mm |
|
|
PCB available width |
30 - 300 mm |
|
|
PCB available length |
50 - 320 mm |
|
|
G.W. |
49 kg |
|
